Product Overview
The CKEPF86/SC is a flexible and durable Low Smoke Halogen Free (LSHF) Flame Retardant marine control cable engineered for applications requiring excellent mechanical protection, enhanced safety, and electromagnetic shielding. It features EPR insulation, a double layer of Thermoplastic Polyolefin (SHF1) sheath, and a flexible tinned copper wire braid armor. This construction provides superior flexibility for easier installation, effective EMI/RFI shielding, and the critical fire safety benefits of low smoke and zero halogen emission, ensuring full compliance with IEC 60092 standards for marine and industrial control systems.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize the emission of toxic, corrosive fumes and reduce smoke density, crucial for safety in enclosed spaces. Complies with stringent Flame Retardant (IEC 60332) standards.
-
Flexible Armor with EMI Shielding: The tinned copper wire braid armor (Code 8) offers robust mechanical protection while maintaining high flexibility, simplifying installation in tight spaces. It also serves as an effective shield against electromagnetic interference (EMI), protecting sensitive control signals.
-
Dual-Layer Environmental Protection: The double-layer SHF1 sheath (Inner PF & Outer 6) provides excellent defense against moisture, oils, abrasion, and general environmental wear, ensuring long-term reliability and cable integrity.
-
Superior Installability & Durability: This cable is significantly more flexible and easier to handle than steel-armored alternatives, reducing installation time and effort. The combination of EPR insulation and durable sheathing ensures reliable performance at a continuous 90°C.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

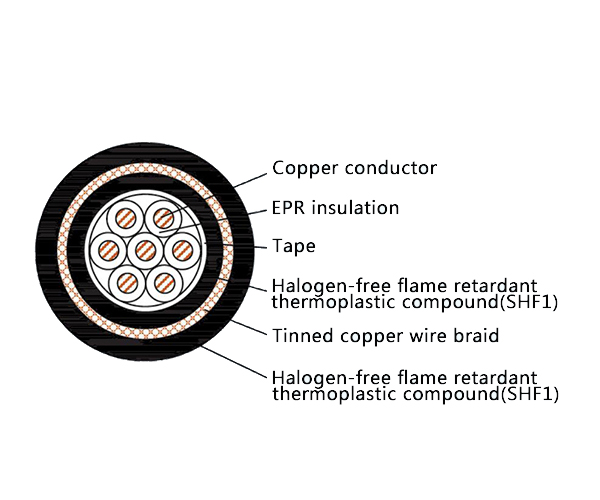

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is ideally suited for:
-
Control, automation, and power circuits on ships, offshore oil & gas platforms, and marine vessels where flexibility, EMI protection, and the highest fire safety (LSHF) standards are required.
-
Industrial control panels, instrumentation, and machinery wiring in chemical plants, power stations, mining, and manufacturing facilities that demand a durable, flexible, and safety-compliant armored cable solution.
