Product Overview
The CKEPF/SC is a versatile Low Smoke Halogen Free (LSHF) Flame Retardant marine control cable designed for reliable power, lighting, and control circuits where enhanced fire safety and flexibility are key requirements. Featuring EPR insulation and a single, durable Thermoplastic Polyolefin (SHF1) outer sheath, this non-armored cable offers a lightweight and cost-effective solution for fixed installations in marine and industrial environments. It fully complies with the stringent IEC 60092 series of standards and is certified for halogen-free, low smoke, and flame-retardant performance.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties reduce the emission of corrosive, toxic gases and smoke, improving visibility and safety during evacuation. Meets Flame Retardant (IEC 60332) standards to inhibit fire spread.
-
Lightweight & Flexible: The simple, non-armored construction with a Thermoplastic Polyolefin (SHF1) sheath (Code PF) makes this cable lighter and more flexible than armored variants, simplifying handling and installation in conduits, trays, or enclosed spaces.
-
Robust & Reliable: EPR insulation provides excellent thermal endurance, moisture resistance, and long-term electrical stability at a continuous temperature of 90°C, ensuring dependable performance.
-
Cost-Effective Solution: An ideal choice for general control and power applications where the superior fire safety of LSHF materials is required, but the additional mechanical protection of armor is not necessary.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

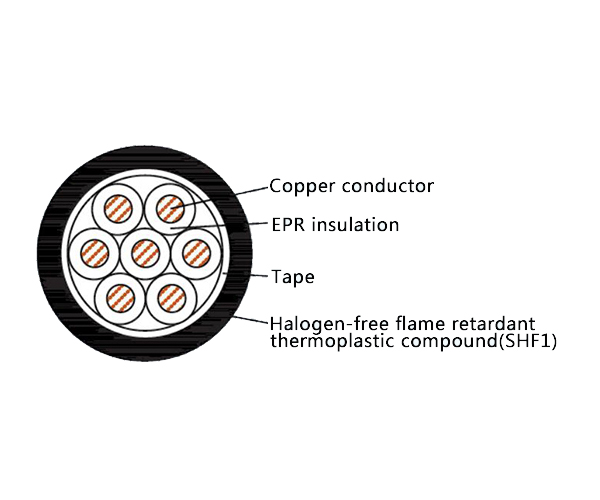

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is designed for a wide range of fixed wiring applications within protected environments:
-
Internal power, lighting, and control circuits on ships, yachts, and offshore accommodations (e.g., oil platforms).
-
Control panels, instrumentation, and general wiring in industrial settings such as power plants, chemical factories, mining operations, and metallurgy plants, particularly where LSHF regulations apply.
