Product Overview
The CKEPF96/SC is a robust Low Smoke Halogen Free (LSHF) Flame Retardant marine control cable engineered for demanding applications requiring superior mechanical protection and enhanced fire safety. It features EPR insulation, an inner and outer sheath of Thermoplastic Polyolefin (SHF1), and heavy-duty galvanized steel wire braid armor. This double-sheathed, armored construction provides exceptional resistance to impact, crushing, and environmental factors, while its LSHF properties ensure safety in confined spaces. It is fully compliant with IEC 60092 standards for critical power, lighting, and control systems on vessels, offshore platforms, and in heavy industry.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic/corrosive fumes and smoke opacity during a fire. Certified for high Flame Retardancy (IEC 60332-1 & -3-22) to inhibit flame propagation.
-
Maximum Mechanical Protection: The galvanized steel wire braid armor (Code 9) provides the highest level of defense against mechanical impact, crushing forces, and rodent damage, ideal for exposed or high-risk areas.
-
Dual-Layer Environmental Sealing: The double-layer SHF1 sheath system (Inner PF & Outer 6) offers superior protection against moisture, oils, abrasion, and general environmental degradation, ensuring long-term cable integrity.
-
Reliable & Durable Performance: EPR insulation guarantees excellent thermal stability and electrical performance at a continuous temperature of 90°C, even within the protected armored core.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

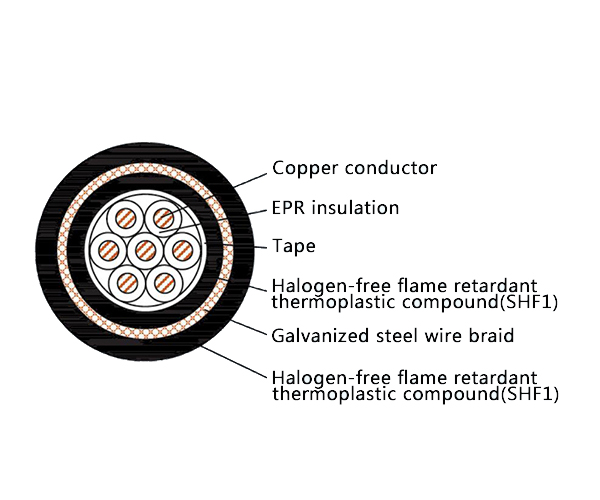

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for fixed installations in the most demanding environments:
-
Main and auxiliary control, power, and lighting circuits on ships, oil & gas platforms, and offshore structures where both mechanical protection and stringent fire safety (LSHF) are required.
-
Control systems and instrumentation in harsh industrial settings such as power generation facilities, chemical plants, mining operations, and metallurgy plants.
