Product Overview
The CKEPJ80/SC is a specialized Low Smoke Halogen Free (LSHF) marine control cable designed for applications demanding ultimate fire safety, electromagnetic compatibility, and installation flexibility. It features EPR insulation, a resilient cross-linked polyolefin (SHF2) inner sheath, and a flexible tinned copper wire braid armor. Supplied without an outer sheath (Code 0), this SC-grade cable provides a high-performance, safety-compliant core ideal for final integration into systems requiring custom external jacketing or conduit, fully adhering to IEC 60092 standards for critical marine and industrial control circuits.
Key Features & Benefits
-
Premium Fire Safety (LSHF/SC Grade): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic gas emission and smoke density, enhancing safety in confined areas. Certified for high Flame Retardancy (IEC 60332-1 & -3-22).
-
Flexible Armor with EMI/RFI Shielding: The tinned copper wire braid armor (Code 8) offers excellent mechanical protection and high flexibility for easier installation in tight spaces, while also providing effective shielding against electromagnetic and radio frequency interference.
-
Thermally Stable & Protective Core: The cross-linked polyolefin (SHF2) inner sheath (Code PJ) ensures superior thermal, chemical, and environmental resistance, safeguarding the cable core before final installation or application of an external jacket.
-
Maximum Integration Flexibility: The absence of an outer sheath (Code 0) offers unparalleled adaptability for system integrators and panel builders to apply a site-specific final over-sheath, conduit, or additional protective/fireproof layer tailored to precise application requirements.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

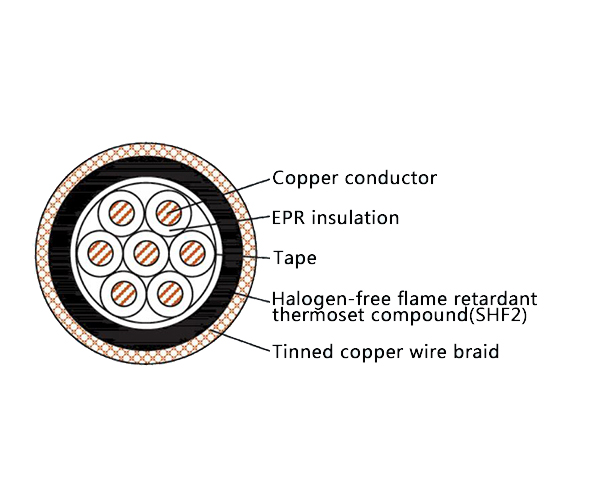

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for high-safety, customizable installations requiring flexibility and EMI protection:
-
Control, instrumentation, and power circuits on ships, offshore platforms, and marine structures where LSHF standards are mandatory and installation routing is complex.
-
Sensitive control systems within industrial control panels, power plants, chemical processing, and mining facilities that require a flexible, shielded, and safety-compliant cable core for final integration into specialized containment systems.
