Product Overview
The CKEV90/SA is a heavy-duty armored marine control cable designed for applications requiring maximum mechanical protection combined with final installation flexibility. It features reliable EPR insulation, a PVC inner sheath, and robust galvanized steel wire armor. Supplied without an outer sheath (Code 0), this SA-grade flame-retardant cable is ideal for integration into control panels, conduits, or systems where a specific type of final over-sheathing or fireproofing is applied on-site. It provides a durable core solution for power, lighting, and control circuits, fully compliant with IEC 60092 standards for marine and industrial use.
Key Features & Benefits
-
Superior Mechanical & Crush Protection: The galvanized steel wire braid armor (Code 9) provides excellent defense against physical impact, crushing forces, and rodent damage in demanding environments.
-
Installation & Customization Flexibility: The absence of an outer sheath (Code 0) makes this armored cable core ideal for system integrators, panel builders, or installations where the cable will be routed through dedicated trunking or receive a custom protective or fire-retardant outer jacket tailored to specific project requirements.
-
Cost-Effective & Reliable Core: Provides the essential components of a durable marine cable—thermally stable EPR insulation and strong armor—offering a versatile and adaptable base for final application finishing.
-
Certified Flame Retardant Safety: Rated for SA-grade Flame Retardancy (IEC 60332-1 & -3-22), ensuring verified performance to inhibit fire spread in bunched cable installations.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

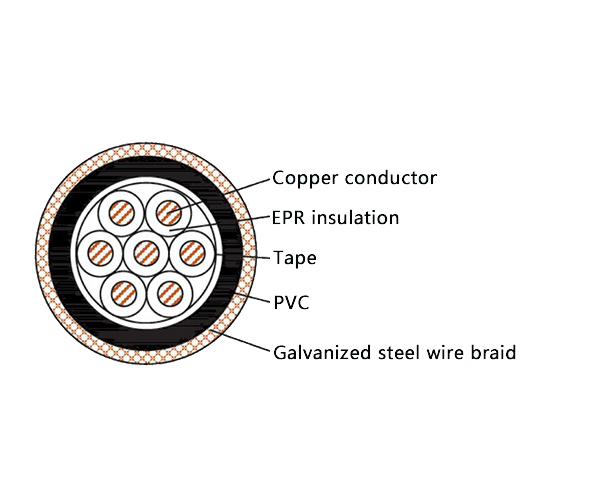

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in accordance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This armored cable core is engineered for fixed installations requiring high durability and adaptability:
-
Control, power, and lighting systems on ships, offshore drilling platforms, and marine structures, particularly where final sheathing is applied as part of the vessel's construction or retrofit.
-
Industrial control panels, automation systems, and machinery in sectors like mining, power generation, and chemical plants, where a customizable armored cable base is specified for integration into larger systems or specialized containment.
