Product Overview
The CKEV/SA is a standard, cost-effective marine control cable designed for general-purpose power, lighting, and control circuits. It features reliable EPR insulation for thermal endurance and a durable PVC outer sheath. Certified for SA-grade Flame Retardancy, this unarmored and unscreened cable provides a robust and flexible solution for fixed installations on ships, offshore platforms, and in various industrial plants, fully complying with the core requirements of the IEC 60092 standard series.
Key Features & Benefits
-
Reliable & Economical: Offers a balance of performance and value for standard control and power applications where advanced shielding or mechanical armor is not required.
-
Flame Retardant Safety: Meets SA-grade Flame Retardancy (IEC 60332-1 & IEC 60332-3-22), providing verified performance to inhibit fire spread in bunched cable installations.
-
Durable & Flexible: The PVC sheath (Code V) provides good resistance to abrasion, moisture, and general environmental factors. Combined with EPR insulation, it ensures flexibility for easier installation and long-term reliability at temperatures up to 90°C.
-
Simplified Installation: The lightweight and flexible design makes it easy to handle, route, and terminate in control panels, conduits, and cable trays.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

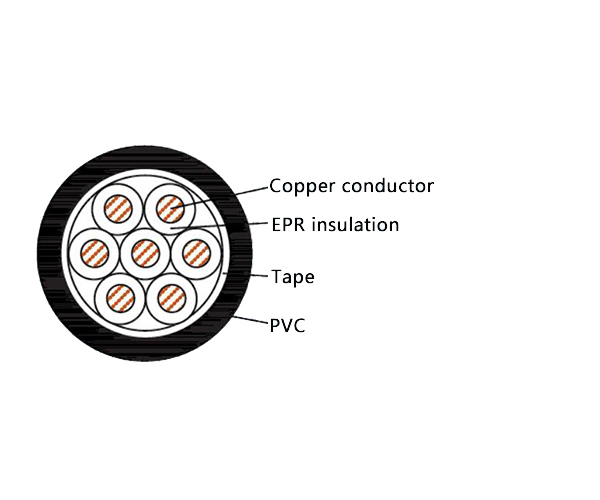

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Sheath | V | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in accordance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is suitable for a wide range of standard installations in:
-
General power, lighting, and basic control circuits on ships, barges, and offshore structures where higher levels of EMI protection or mechanical armor are not specified.
-
Industrial control wiring, panel interconnections, and non-critical circuits in environments such as factory automation, building management systems, power plants, and mining facilities.
