Product Overview
The CKEFP90/SA is a robust screened and armored marine control cable designed for applications requiring superior mechanical protection and electromagnetic interference (EMI) shielding, with final installation flexibility. It features EPR insulation, an oil-resistant PCP inner sheath, an overall EMI screen, and heavy-duty galvanized steel wire armor. Supplied without an outer sheath (Code 0), this SA-grade flame-retardant cable is ideal for integration into systems where additional conduit, jacketing, or custom protection is applied on-site, ensuring compliance with IEC 60092 standards for marine and industrial control systems.
Key Features & Benefits
-
Superior Mechanical & Crush Resistance: The galvanized steel wire braid armor (Code 9) provides maximum protection against physical impact, crushing forces, and rodent damage in demanding environments.
-
Excellent EMI Shielding & Internal Protection: An overall screen (Code P) safeguards signal integrity, while the PCP inner sheath (Code F) offers oil and chemical resistance, protecting the core before the armored layer.
-
Installation & Customization Flexibility: The absence of an outer sheath (Code 0) makes this cable ideal for panel building, routing through dedicated trunking, or for applications where a specific type of final over-sheathing or fireproofing is required in situ.
-
Certified Flame Retardant Safety: Rated for SA-grade Flame Retardancy (IEC 60332-1 & -3-22), providing verified performance in bunched cable installations to inhibit fire spread.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

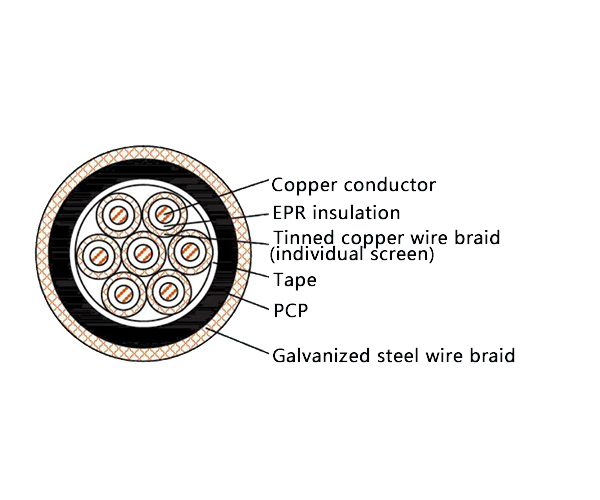

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | F | Polychloroprene (PCP) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is engineered for fixed installations requiring high durability and EMI protection in:
-
Control, power, and lighting circuits on ships, offshore drilling platforms, and marine structures.
-
Industrial control panels, automation systems, and machinery in heavy industries such as mining, power generation, chemical processing, and metallurgy, where a customizable armored cable core is specified.
