Product Overview
The CKEFP92/SA is a heavy-duty screened and armored marine control cable engineered for maximum durability and signal integrity in critical applications. It combines EPR insulation, an oil-resistant PCP inner sheath, an overall EMI screen, robust galvanized steel wire armor, and a protective PVC outer sheath. Designed for Flame Retardant (SA) performance in bunched installations, this cable offers exceptional mechanical protection and environmental resistance for power, lighting, and control systems on vessels, offshore platforms, and in harsh industrial settings, complying with IEC 60092 standards.
Key Features & Benefits
-
Maximum Mechanical Protection: The galvanized steel wire braid armor (Code 9) provides superior resistance against impact, crushing, and mechanical damage, ideal for exposed or high-risk installation areas.
-
Effective EMI Shielding & Environmental Sealing: The cable core is protected by an EMI/RFI screen (Code P) and an oil-resistant PCP inner sheath (Code F), ensuring signal clarity and internal protection against oils and moisture before the final armored layer.
-
Durable Outer Protection: A tough PVC outer sheath (Code 2) offers additional protection against abrasion, sunlight, and general environmental factors, ensuring long-term reliability.
-
Flame Retardant Safety: Certified for Flame Retardancy (SA Class) according to IEC 60332-1 & IEC 60332-3-22 for bunched cable installations, enhancing fire safety.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

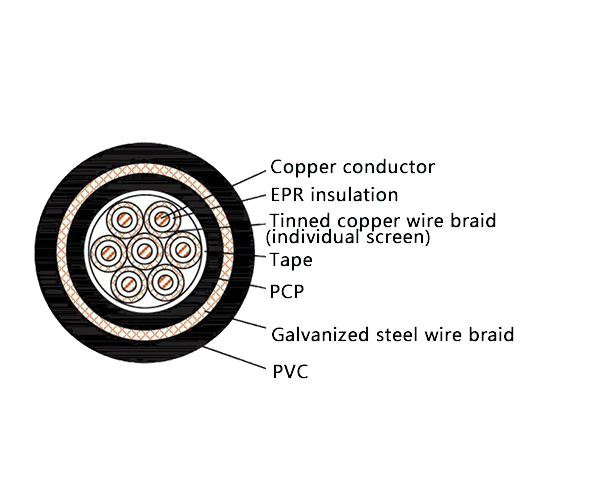

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | F | Polychloroprene (PCP) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is engineered for demanding fixed installations in:
-
Main and auxiliary control circuits, power, and lighting systems on ships, oil rigs, and offshore platforms.
-
Industrial control systems, factory automation, and machinery requiring robust, shielded, and armored cabling in sectors like mining, chemical plants, power generation, and metallurgy.
