Product Overview
The CKEFP82/SA is a versatile and durable screened marine control cable designed for applications requiring a balance of electromagnetic interference (EMI) protection, mechanical resilience, and flexibility. It features EPR insulation, an oil-resistant PCP inner sheath, an overall EMI screen, flexible tinned copper wire braid armor, and a protective PVC outer sheath. This construction provides excellent signal integrity, resistance to oils and abrasion, and SA-grade Flame Retardant performance for reliable use in power, lighting, and control systems on ships, offshore platforms, and in industrial plants, complying with IEC 60092 standards.
Key Features & Benefits
-
Flexible Armor & EMI Shielding: The tinned copper wire braid armor (Code 8) offers effective mechanical protection while maintaining high flexibility for easier installation in tight spaces. Combined with the overall screen (Code P), it provides reliable EMI/RFI shielding for sensitive control signals.
-
Robust Environmental Protection: The cable features a dual-layer sheath system: an oil-resistant PCP inner sheath (Code F) and a tough PVC outer sheath (Code 2), guarding against moisture, oils, chemicals, and abrasion.
-
Flame Retardant & Durable: Certified for SA-grade Flame Retardancy (IEC 60332-1 & -3-22) in bunched installations. The EPR insulation ensures long-term thermal stability and performance at temperatures up to 90°C.
-
Superior Installability: The combination of copper braid armor and a smooth PVC outer sheath makes this cable more flexible and easier to handle and route compared to steel-armored alternatives, without compromising on protection.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

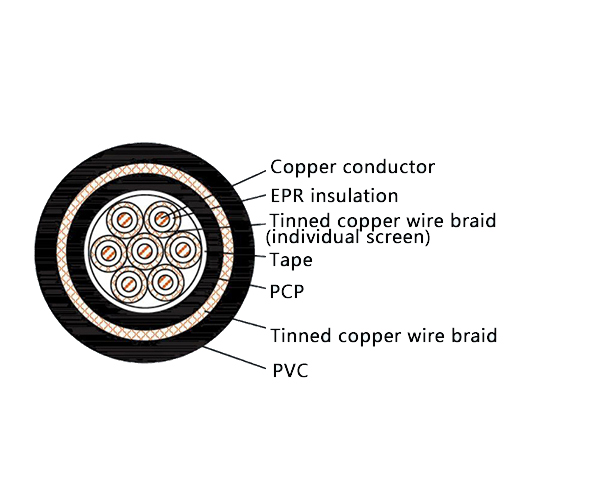

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | F | Polychloroprene (PCP) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 2 | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is ideally suited for:
-
Control, instrumentation, and power circuits on ships, oil & gas platforms, and other offshore structures where flexibility and EMI protection are important.
-
Industrial automation, machinery control panels, and equipment wiring in environments such as manufacturing plants, chemical facilities, mining operations, and power stations that require a durable, shielded, and flexible armored cable.
