Product Overview
The CKEF82/NA is a specialized Fire Resistant (IEC 60331) marine control cable designed for critical circuits where maintaining circuit integrity during a fire is essential. Combining a mica glass tape and EPR insulation system with Low Smoke Halogen Free (LSHF) materials, it ensures both fire survival and enhanced safety for power, lighting, and control systems in high-risk environments such as offshore platforms and ships. It is fully compliant with the IEC 60092 series for marine applications.
Key Features & Benefits
-
Critical Fire Resistance: Meets IEC 60331 standards, ensuring the cable continues to operate for a specified time under direct flame, which is crucial for emergency systems, alarms, and shutdown circuits.
-
Enhanced Safety Suite: Features Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties to reduce toxic fumes and smoke opacity, alongside general Flame Retardancy (IEC 60332-1 & -3-22).
-
Robust Marine Construction: EPR insulation offers thermal stability (90°C) and durability. A tinned copper wire braid armor provides mechanical protection and EMI shielding, with an overall PVC sheath for environmental resistance.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

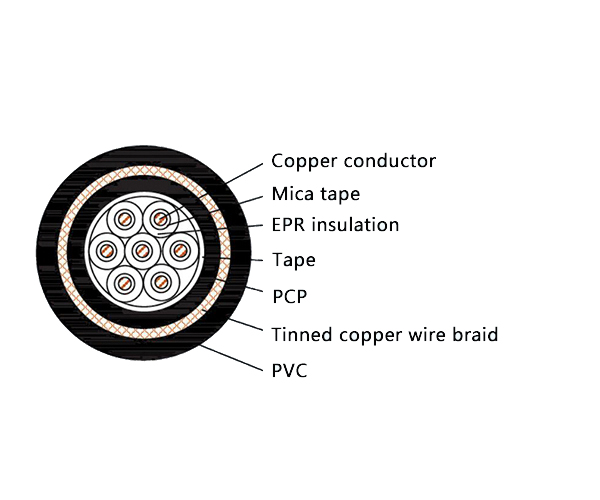

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR Insulation |
| Inner Sheath | F | PCP (Polychloroprene) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Sheath Color | / | Black or Other Color |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in compliance with key international safety and marine standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for vital systems where operational continuity during fire is required:
-
Power, lighting, and essential control systems on marine vessels and offshore constructions (e.g., oil & gas platforms).
-
Emergency circuits, safety interlocks, and critical control networks in power plants, chemical processing, metallurgy, and mining industries.
