Product Overview
The CKEF90/NA is a specialized Armored Fire Resistant marine control cable designed for applications requiring robust mechanical protection and guaranteed circuit integrity during fire emergencies. Its defining feature is the exposed Galvanized Steel Wire Braid Armor (without an outer sheath), which allows for direct grounding and efficient installation in specific configurations. Combining Mica Glass Tape and EPR Insulation for fire resistance with Low Smoke Halogen Free (LSHF) safety properties, this cable is ideal for critical control circuits in marine, offshore, and industrial settings.
Key Features & Benefits
-
Guaranteed Fire Resistance (IEC 60331): Ensures critical power, lighting, and control circuits remain operational under direct fire exposure, essential for emergency systems.
-
Exposed Steel Wire Armor: The Galvanized Steel Wire Braid Armor (Code 9) is the outermost layer, providing superior mechanical protection against impact and crushing. This design facilitates effective grounding and can be suitable for certain tray or conduit installations.
-
Enhanced Fire Safety: Constructed with Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) materials, reducing toxic gas emission and smoke density. Also compliant with Flame Retardant standards (IEC 60332).
-
Durable Construction: Features a PCP (Polychloroprene) inner sheath offering resistance to oil, weathering, and abrasion, protecting the core beneath the armor.
-
High-Temperature Capability: EPR insulation ensures stable performance at a continuous operating temperature of up to 90°C.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

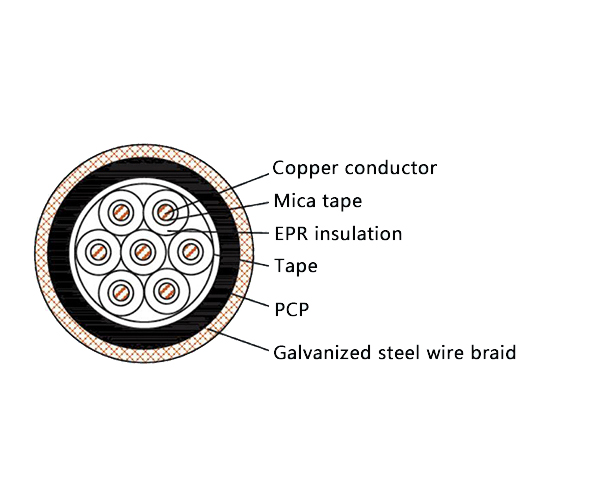

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR Insulation |
| Inner Sheath | F | Polychloroprene (PCP) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable meets the following international standards for marine and safety applications:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
Designed for critical systems where fire resistance and mechanical protection are paramount, particularly where an exposed armor design is specified or advantageous:
-
Power, lighting, and control systems on ships, oil platforms, and offshore constructions, especially in engine rooms, pump control panels, and emergency circuits.
-
Essential control and safety systems in power plants, chemical industries, metallurgy, and mining, where direct armor grounding or specific installation methods are employed.
