Product Overview
The CKEVP92/NA is a high-integrity Fire Resistant, Screened, and Armored marine control cable designed for the most critical safety and control circuits where system operation must be maintained during a fire. It combines EPR insulation with a mica glass tape barrier for certified fire resistance, an EMI/RFI screen for signal integrity, and galvanized steel wire armor within a double-layer PVC sheath for maximum mechanical and environmental protection. This robust construction is engineered for vital systems in the most demanding marine, offshore, and industrial applications, complying with the stringent IEC 60331 fire resistance standard and IEC 60092.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): The mica glass tape and EPR insulation construction ensures the cable maintains circuit integrity and continues to operate for a specified duration under direct flame, which is critical for emergency shutdown, alarm, and safety systems.
-
Comprehensive Protection: Provides a triple layer of defense: an electrical screen protects against electromagnetic interference, galvanized steel wire armor offers superior crush and impact resistance, and a double PVC sheath ensures durability against moisture, chemicals, and abrasion.
-
Reliable Performance in Extreme Conditions: EPR insulation provides excellent thermal stability (90°C) and flexibility. The overall design is built to withstand harsh physical and environmental stresses while performing its vital safety function.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

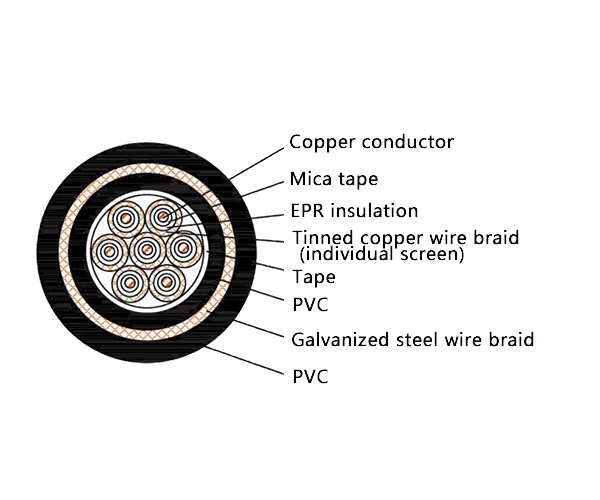

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for the most vital circuits where failure during a fire is not an option, and where physical protection is also paramount.
-
Marine & Offshore: Emergency shutdown (ESD) systems, fire pump controls, emergency lighting, alarm circuits, and essential communication links on ships, oil platforms, and FPSOs, particularly in high-risk zones and exposed routes.
-
Critical Industrial Infrastructure: Safety instrumented systems (SIS), critical process controls, and emergency power circuits in power generation (including nuclear), petrochemical plants, and mining operations where fire resistance and physical durability are legally mandated for risk mitigation.
