Product Overview
The CKEVP90/NA is a critical-circuit Fire Resistant, Screened, and Armored marine control cable engineered for power, lighting, and control systems where circuit integrity during a fire is paramount. Featuring a mica glass tape and EPR insulation core for certified fire resistance, an integrated EMI/RFI screen, and heavy-duty galvanized steel wire armor, this cable is protected by a single PVC inner sheath with no outer oversheath. This streamlined, grounding-ready design is built for vital safety and emergency systems in harsh marine, offshore, and industrial environments, complying with the stringent IEC 60331 fire resistance standard.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): The mica glass tape barrier beneath EPR insulation ensures the cable maintains electrical circuit integrity and continues to operate for a critical period under direct flame, essential for emergency and safety-critical systems.
-
Robust Protection & Signal Integrity: The galvanized steel wire armor provides maximum mechanical protection against crushing and impact. An integrated electrical screen safeguards sensitive control signals from electromagnetic interference (EMI/RFI).
-
Grounding-Ready, Streamlined Construction: The single PVC sheath over the armor, with no outer oversheath, allows for direct access to the conductive steel armor for reliable grounding to a ship's hull or structural ground. This results in a more compact cable profile.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.

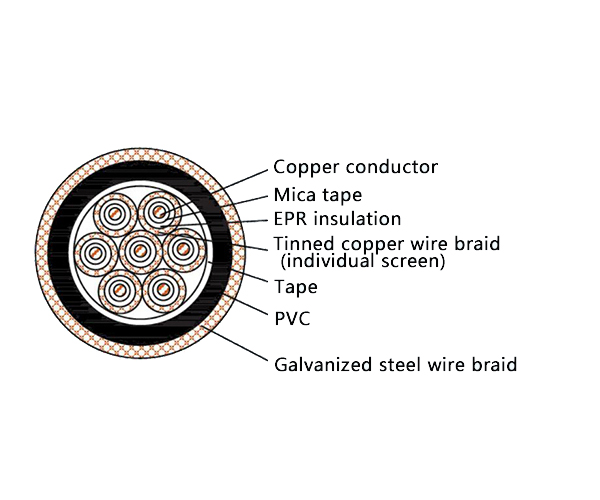

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
Applications
This cable is specified for the most vital circuits where operation during a fire is essential, and where armor grounding is part of the system design.
-
Marine & Offshore: Emergency shutdown (ESD) systems, fire pump controls, emergency lighting, and critical alarm circuits on ships and offshore platforms, especially where the armored cable must be grounded to the hull or structure.
-
Safety-Critical Industrial Plants: Essential control wiring for safety instrumented systems (SIS) and emergency functions in power plants and chemical facilities where fire resistance and a reliable grounded armor path are required.
