Product Overview
The CEFR82/NA is a heavy-duty, fire-resistant marine flexible power cable engineered for critical safety circuits that require certified circuit integrity during a fire, along with complete mechanical and environmental protection. It combines Ethylene Propylene Rubber (EPR) insulation, a resilient Polychloroprene (PCP) inner sheath, tinned copper wire braid armor, and a protective PVC outer sheath. This full-protection design ensures fire survival, EMI shielding, and durability for essential emergency systems in demanding marine and industrial installations.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (Class 5/6 flexible) (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

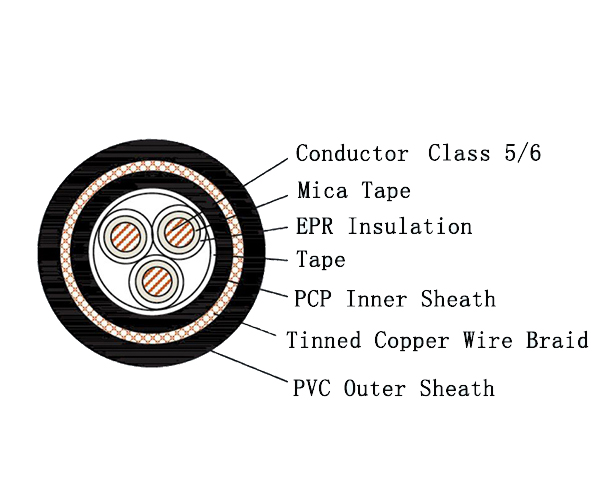

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire (Flexible Class 5/6) |
| Insulation | E | EPR insulated |
| Inner Sheath | F | PCP |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Outer Sheath Color | / | Black or other Color |
| Flammability | NA | Fire Resistant |
Key Performance Characteristics
-
Certified Fire Resistance (IEC 60331): The cable is engineered to maintain circuit integrity and continue operating for a specified period under direct flame exposure, a critical requirement for life-safety and emergency circuits.
-
Complete Sheath Protection: Features a dual-sheath system: a Polychloroprene (PCP, Neoprene) inner sheath for oil and weather resistance, plus a PVC outer sheath that provides an additional, robust layer of mechanical and environmental protection for the armor and core.
-
Effective EMI Shielding: The tinned copper wire braid armor provides reliable electromagnetic interference (EMI) shielding for sensitive control and power circuits.
-
High Flexibility: Utilizes flexible Class 5/6 conductors, ensuring easy installation in complex cable trays and confined spaces, despite its fully sheathed and armored construction.
-
Flame Retardant: Complies with IEC 60332-1 and IEC 60332-3-22, inhibiting the spread of flame along the cable run.
Standards & Compliance
This cable is designed and tested in accordance with key international marine and fire safety standards:
-
IEC 60092-350, 353 (General construction and tests)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy tests)
Typical Applications
This cable is specified for critical safety circuits where fire survival must be combined with full mechanical protection and EMI shielding:
-
Marine & Offshore: Essential power and control circuits for emergency generators, fire pumps, alarm systems, and emergency lighting on ships and offshore platforms where enhanced durability is required.
-
Critical Infrastructure: Safety-critical wiring in power plants, industrial facilities, and public buildings where both certified fire-resistant cabling and robust physical protection are mandated.
