Product Overview
The CEPFR/SC is a halogen-free, low-smoke, flame-retardant marine flexible power cable designed for safe and reliable performance in protected environments. Featuring superior Ethylene Propylene Rubber (EPR) insulation and a thermoplastic polyolefin (SHF1) sheath, it offers excellent electrical properties, flexibility, and enhanced fire safety. This unarmored, lightweight cable is an ideal choice for internal power, lighting, and control circuits where halogen-free materials are specified.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (Class 5/6 flexible) (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

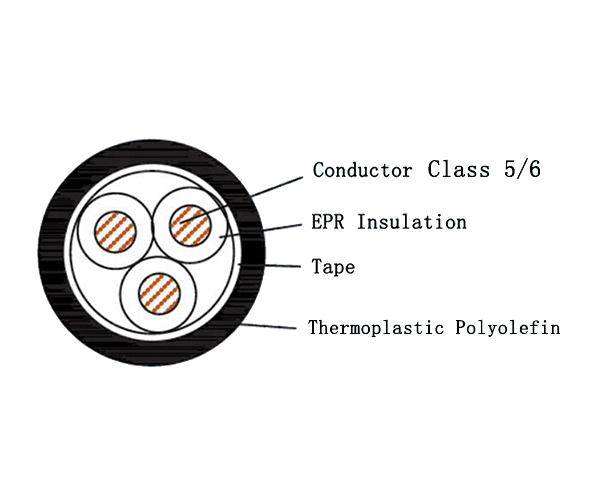

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire (Flexible Class 5/6) |
| Insulation | E | EPR insulated |
| Sheath | PF | Thermoplastic Polyolefin(SHF1) |
| Sheath Color | / | Black or other Color |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Key Performance Characteristics
-
Superior EPR Insulation: Ethylene Propylene Rubber (EPR) provides excellent dielectric strength, high flexibility over a wide temperature range, and outstanding long-term resistance to heat, moisture, and electrical stress.
-
Halogen-Free Enhanced Safety: The cable is constructed with halogen-free, low-smoke materials (IEC 60754 & IEC 61034) and is flame retardant (IEC 60332). This minimizes the emission of corrosive gases and dense smoke in a fire, enhancing safety for personnel in confined spaces.
-
High Flexibility & Lightweight: Designed with flexible Class 5/6 conductors and no armor, this cable offers exceptional ease of handling and installation in conduits, cable trays, and control panels.
-
Good Environmental Resistance: The thermoplastic polyolefin (SHF1) sheath provides reliable protection against moisture and offers good resistance to abrasion.
Standards & Compliance
This cable is designed and manufactured in accordance with key international marine and safety standards:
-
IEC 60092-350, 353 (General construction and requirements)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy tests)
Typical Applications
This flexible cable is ideally suited for installations within protected enclosures or areas with minimal risk of mechanical damage:
-
Marine & Offshore: Internal wiring for control panels, switchboards, instrumentation, lighting, and auxiliary power circuits within accommodation areas and control rooms on ships and offshore structures.
-
Industrial: General power and control wiring in industrial settings where halogen-free, flame-retardant, and flexible cabling is required for control systems and machinery panels.
