Product Overview
The CJ96/SC is a halogen-free, low-smoke, flame-retardant (LSF) marine power cable designed for fixed installations. It features cross-linked polyethylene (XLPE) insulation and galvanized steel wire armor, providing a robust solution for power, lighting, and control circuits in demanding environments where enhanced fire safety is required.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Annealed Copper, Tinned or Plain, Stranded (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

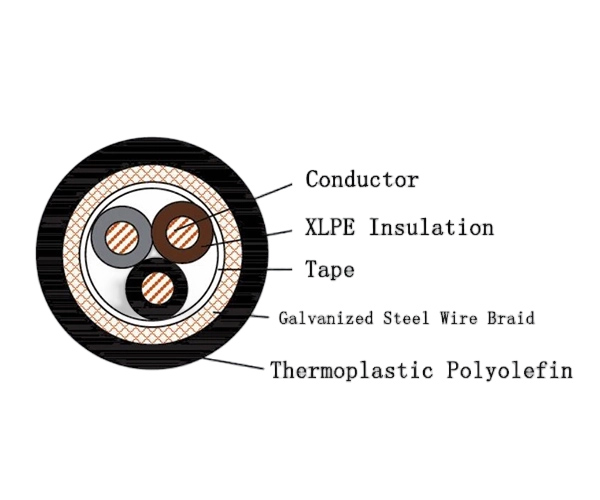

Cable Construction & Materials (Code: CJ96/SC)
| Item | Code | Material / Description |
|---|---|---|
| Conductor | - | Tinned or Plain Stranded Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | - | Standard Black (Other Colors Available) |
| Flammability Class | SC | Halogen Free, Low Smoke, Flame Retardant |
Key Performance Characteristics
-
Flame Retardant: Complies with IEC 60332-1 and IEC 60332-3-22 for flame propagation resistance.
-
Low Smoke & Halogen Free: Meets IEC 61034 for low smoke emission and IEC 60754 for halogen-free gas generation, enhancing visibility and reducing corrosivity in case of fire.
-
Robust Mechanical Protection: Galvanized steel wire armor (IEC 60092-353) provides excellent resistance against mechanical impact, crush, and rodent damage.
-
Thermal & Chemical Resistance: XLPE insulation ensures stable performance at elevated temperatures and good resistance to various environmental factors.
Standards & Approvals
This cable is designed and manufactured according to the following international standards:
-
IEC 60092-350, 353 (General requirements and tests, Armor)
-
IEC 60092-360 (Insulating and sheathing materials)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy)
-
IEC 60754 (Halogen-free)
-
IEC 61034 (Low smoke density)
Typical Applications
This cable is suitable for fixed installations in:
-
Marine & Offshore: Power distribution, lighting, and control systems on ships, oil platforms, and other offshore structures.
-
Industrial: Power networks in harsh environments such as metallurgy plants, chemical processing facilities, power generation stations, and mining operations.
