Product Overview
The CJPFR80/SC is a halogen-free, flame-retardant, flexible marine power cable designed for applications requiring high flexibility and reliable performance. Its construction features fine-strand copper conductors, XLPE insulation, and a tinned copper wire braid armor, making it ideal for connections in control panels, moving equipment, and tight spaces on vessels and offshore installations.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Class 5/6 (Fine Strand) Tinned Annealed Copper Wire (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

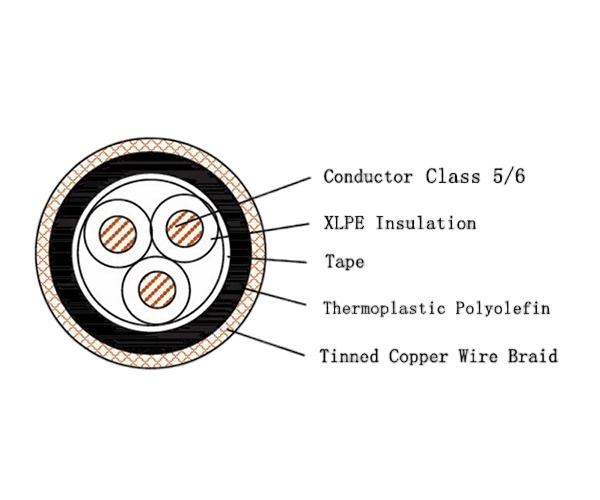

Cable Construction & Materials (Code: CJPFR80/SC)
| Item | Code | Material / Description |
|---|---|---|
| Conductor | - | Class 5/6 (R) Tinned Annealed Copper Wire (High Flexibility) |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability Class | SC | Halogen Free, Low Smoke, Flame Retardant |
Key Performance Characteristics
-
High Flexibility: Fine-stranded Class 5/6 conductors and copper braid armor provide excellent flexibility for easy handling, routing, and connection in confined spaces.
-
Flame Retardant: Complies with IEC 60332-1 and IEC 60332-3-22, inhibiting the spread of flame along the cable.
-
Halogen Free & Low Smoke: The inner sheath material (SHF1) is designed to minimize corrosive gas emission and smoke density in case of fire, enhancing safety.
-
Corrosion-Resistant Armor: Tinned copper wire braid offers effective electromagnetic shielding and good resistance to corrosion in marine atmospheres.
-
Thermal Stability: XLPE insulation maintains electrical integrity and flexibility at temperatures up to 90°C.
Standards & Compliance
This flexible cable is designed and manufactured in accordance with the following international marine standards:
-
IEC 60092-350, 353 (General construction and armor requirements)
-
IEC 60092-360 (Insulating and sheathing materials)
-
IEC 60332-1 & IEC 60332-3-22 (Tests for vertical and large-scale flame spread)
Typical Applications
This flexible cable is specifically suited for:
-
Marine & Offshore: Internal wiring for control cabinets, switchboards, instrumentation, and connections to moving equipment on ships, oil platforms, and offshore structures.
-
Industrial: Flexible power and control connections in applications requiring frequent movement or installation in tight spaces within plants, power stations, and processing facilities.
