Product Overview
The CJ96/NC is a premium halogen-free, low-smoke, fire-resistant marine power cable designed for demanding applications. Featuring XLPE insulation, galvanized steel wire armor, and a flame-retardant sheath, it ensures reliable power transmission with enhanced safety and durability in critical environments.
Key Features & Benefits
-
Fire Safety Performance: Combines fire resistance (IEC 60331), flame retardancy (IEC 60332), low smoke emission (IEC 61034), and halogen-free materials (IEC 60754) for increased safety during fire incidents.
-
Robust Construction: XLPE insulation offers excellent thermal and chemical resistance, while steel wire armor (IEC 60092-353) provides superior mechanical protection.
-
Marine & Industrial Grade: Specifically designed to withstand harsh conditions on ships, offshore platforms (oil & gas), and in heavy industries.
-
High-Temperature Rating: Suitable for continuous operation at conductor temperatures up to 90°C.
Primary Applications
This cable is ideal for fixed installations in:
-
Marine & Offshore: Power, lighting, and control circuits on ships, offshore drilling platforms, and other maritime structures.
-
Heavy Industries: Reliable cabling for power networks in metallurgical plants, chemical processing facilities, power stations, and mining operations where enhanced safety is required.
Standards & Compliance
This cable is designed and manufactured in accordance with international marine and electrical standards:
-
IEC 60092-350, 353 (General Construction & Armor)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation & Sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame Retardancy)
-
IEC 60754 (Halogen-Free Gas Emission)
-
IEC 61034 (Low Smoke Density)

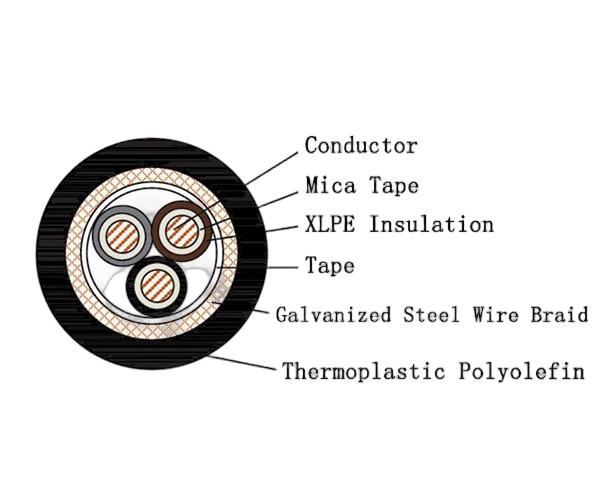

Cable Construction (Code: CJ96/NC)
| Item | Code | Material / Description |
|---|---|---|
| Series | C | Marine Power Cable |
| Conductor | - | Tinned or Plain Stranded Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) - Halogen Free |
| Sheath Color | - | Standard Black (Other Colors Available) |
| Flammability | NC | Halogen Free, Low Smoke, Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV (U<sub>m</sub>)
-
Max. Continuous Conductor Temperature: 90°C
-
Available Core Numbers: 1 to 37 Cores
-
Available Cross-Sectional Area: 0.75 mm² to 300 mm²
