Product Overview
The CJ86/NC is a compact and fire resistant marine power cable designed with an efficient, streamlined construction that omits a separate inner sheath. It features a core of Mica Glass Tape + XLPE composite insulation to ensure circuit integrity during fire emergencies (IEC 60331). The insulated cores are directly protected by a flexible tinned copper wire braid armor and over-sheathed with Halogen-Free, Low-Smoke Thermoplastic Polyolefin (SHF1). This design provides a certified fire-safe, environmentally friendly, and mechanically robust solution in a space-saving package, ideal for critical circuits in demanding marine and industrial settings.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Guarantees that essential safety circuits (e.g., emergency lighting, fire alarms, pump controls) maintain operation for a specified period under fire and impact conditions, which is vital for life safety systems.
-
Compact & Space-Saving Design: The absence of a separate inner sheath results in a more streamlined, lightweight, and cost-effective cable structure, facilitating easier installation in space-constrained environments like cable trays and conduits.
-
Flexible & Corrosion-Resistant Armor: The braided armor of tinned copper wires provides excellent flexibility for routing, good tensile strength, and inherent corrosion resistance, making it suitable for marine atmospheres.
-
Enhanced Fire Safety (LSZH): As an NC-grade cable, it is Halogen Free and Low Smoke (LSZH), significantly reducing the emission of corrosive/toxic gases and smoke density in case of fire to enhance personnel safety and equipment protection.
-
Durable & Environmentally Resistant Sheath: The Thermoplastic Polyolefin (SHF1) outer sheath offers good resistance to abrasion, moisture, oils, and chemicals, ensuring long-term durability in harsh conditions.

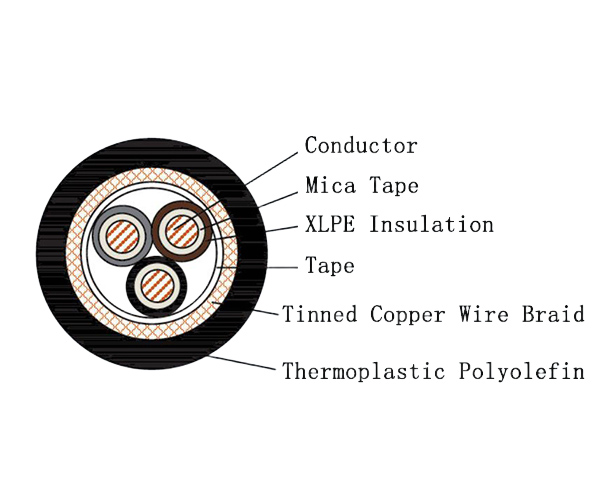

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | \ | None (No separate inner sheath) |
| Armour | 8 | Braid of Tinned or Plain Copper Wires |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) - Halogen Free, Low Smoke |
| Flammability Class | NC | Halogen Free, Low Smoke, Fire Resistant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Armour | Braided Tinned/Plain Copper Wires |
| Outer Sheath | Thermoplastic Polyolefin (SHF1) |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Halogen Content | IEC 60754-1 (Halogen Free) |
| Smoke Density | IEC 61034-2 (Low Smoke) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
This cable is designed and manufactured to meet the highest international standards for fire safety, marine application, and environmental performance:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Tests for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
-
IEC 60754-1: Test on gases evolved during combustion (Halogen Free).
-
IEC 61034-2: Measurement of smoke density (Low Smoke).
Typical Applications
-
Marine & Offshore: Critical emergency and control circuits on ships, offshore platforms, and in engine rooms where space optimization is important. Ideal for emergency lighting, fire alarm systems, communication circuits, and essential control panels requiring certified fire resistance and LSZH safety.
-
Industrial & Infrastructure: Power supply for life-safety systems and critical processes in industrial plants, tunnels, and public buildings where a compact, fire-resistant, and environmentally friendly (halogen-free) cable is specified for protected or semi-exposed installations.
