Product Overview
The CJ86/SC is a streamlined and environmentally safe marine power cable, engineered with an efficient construction that omits a separate inner sheath. It features reliable XLPE insulation for stable electrical performance, protected by a flexible tinned copper wire braid armor and an outer sheath of Halogen-Free, Low-Smoke Thermoplastic Polyolefin (SHF1). This compact design provides enhanced fire safety (SC grade) with minimal smoke and toxic gas emission, combined with good mechanical protection, making it an ideal, space-saving solution for general and critical power circuits in marine and industrial applications where environmental safety and durability are priorities.
Key Features & Benefits
-
Compact & Efficient Design: The absence of a separate inner sheath creates a more streamlined, lightweight cable structure, facilitating easier handling, routing, and installation in space-constrained environments like cable trays and conduits.
-
Enhanced Fire Safety (LSZH): Rated SC (Halogen Free, Low Smoke, Flame Retardant), this cable significantly reduces the emission of corrosive/toxic gases and smoke density in case of fire, enhancing personnel safety and protecting sensitive equipment.
-
Flexible & Corrosion-Resistant Armor: The braided armor of tinned copper wires provides excellent flexibility for installation, good tensile strength, and inherent corrosion resistance, making it well-suited for humid and saline marine atmospheres.
-
Durable & Chemically Resistant Sheath: The Thermoplastic Polyolefin (SHF1) outer sheath offers good resistance to abrasion, moisture, oils, and a range of chemicals, ensuring long-term performance in demanding conditions.
-
Reliable Electrical Performance: XLPE (Cross-Linked Polyethylene) insulation ensures excellent dielectric properties and thermal stability for continuous operation at temperatures up to 90°C.

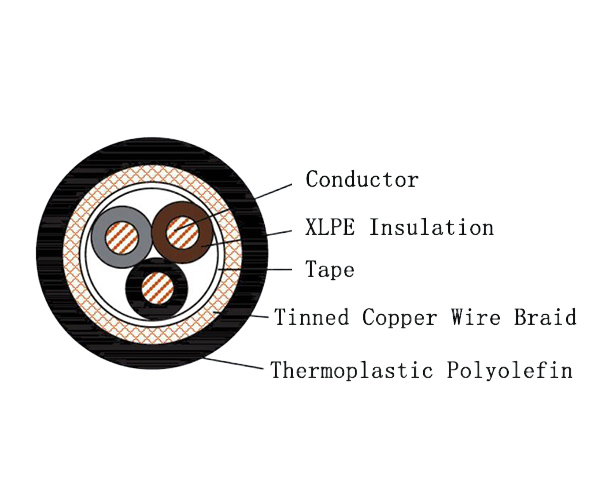

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Cross-Linked Polyethylene (XLPE) Insulated |
| Inner Sheath | \ | None (No separate inner sheath) |
| Armour | 8 | Braid of Tinned or Plain Copper Wires |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) - Halogen Free, Low Smoke |
| Flammability Class | SC | Halogen Free, Low Smoke, Flame Retardant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Cross-Linked Polyethylene (XLPE) |
| Armour | Braided Tinned/Plain Copper Wires |
| Outer Sheath | Thermoplastic Polyolefin (SHF1) |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Halogen Content | IEC 60754-1 (Halogen Free) |
| Smoke Density | IEC 61034-2 (Low Smoke) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
This cable is designed and manufactured in compliance with the following international standards:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
-
IEC 60754-1: Test on gases evolved during combustion (Halogen Free).
-
IEC 61034-2: Measurement of smoke density (Low Smoke).
Typical Applications
-
Marine & Offshore: Power, lighting, and general control circuits on ships, workboats, and offshore platforms where space optimization, enhanced fire safety (LSZH), and resistance to the marine environment are required. Suitable for use in cable trays, along bulkheads, or in conduits.
-
Industrial & Commercial: General power distribution and circuit wiring in industrial plants, commercial buildings, and infrastructure projects where halogen-free, low-smoke cables are specified for safety and environmental reasons, and a compact, armored design is beneficial.
