H05Z-U / H07Z-U / H07Z-R German Standard LSZH Cable – VDE 0282

Low Voltage Power Cables
Description

German Standard Industrial Cable H05Z-U / H07Z-U / H07Z-R

Product Overview

The H05Z-U, H07Z-U and H07Z-R are German standard industrial cables designed for the internal wiring of switchboards and distributor boards with an alternating nominal voltage up to 1000 Volts or a direct voltage up to 750 volts. They are generally installed in pipes or ducts and for internal wiring of appliances with a maximum operating temperature of 90°C.

These cables are suitable for areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt, which is particularly important where electronic equipment is installed.

The cables are manufactured to <HAR> HD 22.9 S2, VDE-0282 Part-9, BS 7211, IEC 60754-2, EN 50267, VDE 0482-267, and comply with the CE Low Voltage Directive 73/23/EEC and 93/68/EEC. They are also ROHS compliant.

Key Features & Benefits

  • LSZH Construction: Low smoke, zero halogen (LSOH) insulation and construction minimise toxic fumes and smoke in fire conditions.

  • No Corrosive Gases: Produces no corrosive gases when burnt, protecting electronic equipment.

  • High Temperature Resistance: Maximum operating temperature of 90°C.

  • Flame Retardant: Complies with IEC 60332.1.

  • Cross-Linked Polyolefin Insulation: EI5 core insulation for enhanced thermal and electrical performance.

  • Voltage Ratings: 300/500V (H05Z-U); 450/750V (H07Z-U / H07Z-R).

  • Test Voltage: 2500 volts.

  • Insulation Resistance: 10 MΩ x km.

  • Short Circuit Temperature: +250°C.

  • ROHS Compliant: Meets environmental and health requirements.

  • Standard Compliant: <HAR> HD 22.9 S2, VDE-0282 Part-9, BS 7211, and related standards.

Typical Applications

  • Internal wiring of switchboards and distributor boards

  • Alternating nominal voltage up to 1000 Volts or direct voltage up to 750 volts

  • Installation in pipes or ducts

  • Internal wiring of appliances with maximum operating temperature of 90°C

  • Public and government buildings where smoke and toxic fumes may cause a threat

  • Areas where electronic equipment is installed (no corrosive gases when burnt)

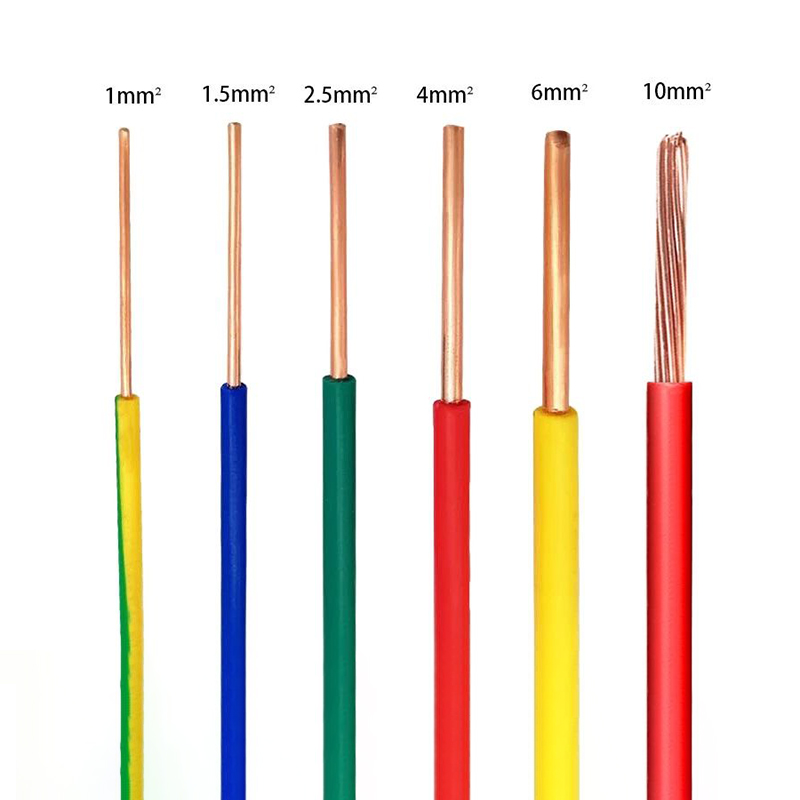

Construction Details

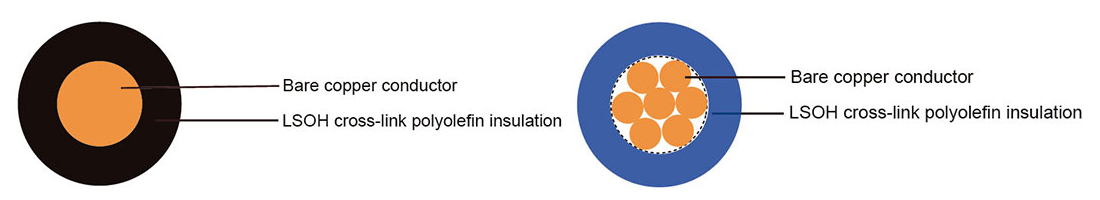

  • Conductor:

    • Solid bare copper single wire to IEC 60228 Cl-1 (H05Z-U / H07Z-U)

    • Bare copper strands to IEC 60228 Cl-2 (H07Z-R)

  • Insulation: Cross-link polyolefin EI5 core insulation

  • Core Colours: Cores to VDE-0293 colours

  • Halogen-Free: LSOH – low smoke, zero halogen

Technical Specifications

Electrical & Thermal Characteristics

Parameter Value
Working Voltage 300/500V (H05Z-U); 450/750V (H07Z-U / H07Z-R)
Test Voltage 2500 volts
Flexing Bending Radius 15 x Ø
Static Bending Radius 10 x Ø
Flexing Temperature +5°C to +90°C
Short Circuit Temperature +250°C
Flame Retardant IEC 60332.1
Insulation Resistance 10 MΩ x km

Parameter Table – H05Z-U

AWG No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Overall Diameter (mm) Nominal Copper Weight (kg/km) Nominal Weight (kg/km)
20 1 x 0.5 0.6 2.0 4.8 8
18 1 x 0.75 0.6 2.2 7.2 12
17 1 x 1 0.6 2.3 9.6 14

Parameter Table – H07Z-U

AWG No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Overall Diameter (mm) Nominal Copper Weight (kg/km) Nominal Weight (kg/km)
16 1 x 1.5 0.7 2.8 14.4 20
14 1 x 2.5 0.8 3.3 24 30
12 1 x 4 0.8 3.8 38 45
10 1 x 6 0.8 4.3 58 65
8 1 x 10 1.0 5.5 96 105

Parameter Table – H07Z-R

AWG No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Overall Diameter (mm) Nominal Copper Weight (kg/km) Nominal Weight (kg/km)
16 (7/24) 1 x 1.5 0.7 3.0 14.4 21
14 (7/22) 1 x 2.5 0.8 3.6 24 33
12 (7/20) 1 x 4 0.8 4.1 39 49
10 (7/18) 1 x 6 0.8 4.7 58 71
8 (7/16) 1 x 10 1 6.0 96 114
6 (7/14) 1 x 16 1 6.8 154 172
4 (7/12) 1 x 25 1.2 8.4 240 265
2 (7/10) 1 x 35 1.2 9.3 336 360
1 (19/13) 1 x 50 1.4 10.9 480 487
2/0 (19/11) 1 x 70 1.4 12.6 672 683
3/0 (19/10) 1 x 95 1.6 14.7 912 946
4/0 (37/12) 1 x 120 1.6 16.0 1152 1174
300MCM (37/11) 1 x 150 1.8 17.9 1440 1448
350MCM (37/10) 1 x 185 2.0 20.0 1776 1820
500MCM (61/11) 1 x 240 2.2 22.7 2304 2371

Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.

Standards & Compliance

  • <HAR> HD 22.9 S2

  • VDE-0282 Part-9

  • BS 7211

  • IEC 60754-2

  • EN 50267

  • VDE 0482-267

  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC

  • ROHS Compliant

  • Flame Retardant: IEC 60332.1

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: H05Z-U, H07Z-U, or H07Z-R

  • Voltage Rating: 300/500V (H05Z-U) or 450/750V (H07Z-U / H07Z-R)

  • Conductor Size: e.g., 1 x 0.5 mm², 1 x 1.5 mm², 1 x 240 mm²

  • Conductor: Solid bare copper (H05Z-U / H07Z-U) or bare copper strands (H07Z-R)

  • Insulation: Cross-link polyolefin EI5

  • Quantity: Total length in meters
