Product Overview
The CJVP/NA is a cost-effective, unarmored fire resistant marine power cable designed for critical safety circuits in protected installations where circuit integrity during fire is essential. It features the certified Mica Glass Tape + XLPE composite insulation system (IEC 60331) to ensure continued operation of emergency systems under fire conditions. With a standard PVC inner sheath, collective copper screen, and no metallic armor, this cable offers superior flexibility, lightweight construction, and ease of installation in cable trays, conduits, or enclosed spaces, providing a reliable and economical solution for vital power and control circuits.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Ensures that essential emergency circuits (e.g., emergency lighting, fire alarms, communication systems) remain operational for a specified duration under direct flame, which is critical for life safety and evacuation procedures.
-
Superior Flexibility & Lightweight: The unarmored (no metallic armor) construction provides excellent flexibility, ease of handling, and reduced weight, facilitating faster and simpler installation in cable management systems.
-
Fire-Survival Core Technology: The Mica Glass Tape layer over XLPE insulation forms a robust, heat-resistant ceramic barrier, maintaining electrical insulation integrity and preventing circuit failure during a fire event.
-
Cost-Effective & Reliable: Utilizes a proven PVC inner sheath and standard materials, offering a durable and economical fire-resistant solution for applications where halogen-free specifications are not required.
-
Essential EMI Shielding: The integrated collective copper screen protects against electromagnetic interference, ensuring signal integrity for power and sensitive control circuits.

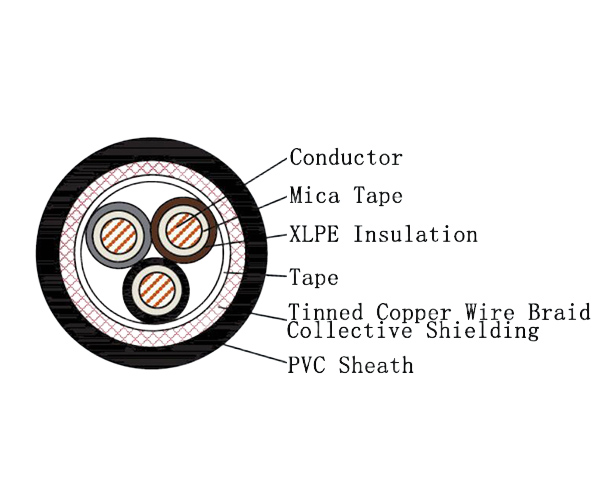

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Collective Copper Screen |
| Flammability Class | NA | Fire Resistant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Polyvinyl Chloride (PVC) |
| Screen | Collective Copper Screen |
| Armour | None (Unarmored) |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
This cable is designed and manufactured to meet key international standards for fire safety and marine applications:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Tests for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
Typical Applications
-
Marine & Offshore: Essential safety and control circuits within protected cable trays, conduits, or enclosures on ships, workboats, and offshore installations. Ideal for emergency lighting, fire alarm systems, and communication circuits where fire-resistant performance is mandated and mechanical protection is provided by the installation method.
-
Industrial & General Infrastructure: Power supply for life-safety systems, alarms, and backup controls in industrial plants, commercial buildings, power stations, and infrastructure projects where flexible, fire-resistant cabling is required for fixed, protected installations.
