Product Overview
The CJVP92/NA is a heavy-duty, double-protected fire resistant marine cable engineered for the most demanding applications where circuit integrity during a fire must be guaranteed alongside maximum mechanical and environmental defense. It combines the fire-survival Mica/XLPE insulated core (IEC 60331) with the robust protection of a dual-layer PVC sheath and a high-strength galvanized steel wire braid armor. This construction provides an exceptionally durable and cost-effective solution for ensuring continuous power to critical safety systems in the harshest marine and industrial environments where extreme physical protection is required.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Guarantees that essential emergency circuits (e.g., fire pumps, emergency lighting, alarm systems) remain operational for a specified duration under direct flame and impact, which is critical for life safety and emergency response.
-
Maximum Mechanical & Environmental Protection: A high-strength galvanized steel wire braid armor provides ultimate resistance to crushing and impact, while the dual-layer PVC sheath offers superior resistance to abrasion, moisture, oils, and chemicals for long-term durability.
-
Fire-Survival Core Technology: The Mica Glass Tape layer over XLPE insulation forms a robust, heat-resistant ceramic barrier that maintains electrical insulation integrity at extreme temperatures, preventing circuit failure during a fire.
-
Proven & Cost-Effective Sheathing: Utilizes durable Polyvinyl Chloride (PVC) for both inner and outer sheaths, delivering excellent protective performance and value for applications where halogen-free materials are not specifically required.
-
Effective EMI Shielding: The integrated collective copper screen protects against electromagnetic interference, ensuring signal integrity for power and control systems.

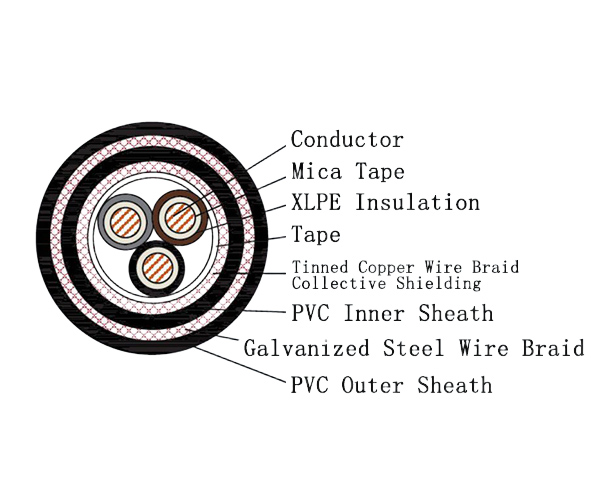

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Collective Copper Screen |
| Armour | 9 | Braid of Galvanized Steel Wires |
| Outer Sheath | 2 | Polyvinyl Chloride (PVC) Outer Sheath |
| Flammability Class | NA | Fire Resistant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Inner & Outer Sheath | Polyvinyl Chloride (PVC) |
| Screen | Collective Copper Screen |
| Armour | Braided Galvanized Steel Wires |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
Manufactured in compliance with key international standards for fire safety and marine applications:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Tests for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
Typical Applications
-
Marine & Heavy Industry: Fixed installations for critical emergency power distribution and safety circuits on ships, offshore platforms, and in heavy industrial plants (e.g., metallurgy, mining) where cables are exposed to severe mechanical abuse and must maintain circuit integrity during a fire.
-
Infrastructure & Utilities: Power supply for essential life-safety and backup systems in tunnels, power generation stations, and large industrial complexes where the highest level of cable robustness, environmental sealing, and fire-resistant performance is required.
