Product Overview
The CJ82/NA is a robust, fire resistant marine power cable featuring a simplified and compact construction without a separate inner sheath. It is built around a core of Mica Glass Tape + XLPE composite insulation to ensure circuit integrity during fire (IEC 60331). The insulated cores are directly protected by a flexible tinned copper wire braid armor, which is then over-sheathed with PVC. This streamlined design offers a cost-effective and durable solution for essential power circuits, providing certified fire resistance, EMI protection, and mechanical strength in a single, efficient package for demanding marine and industrial environments.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Guarantees that critical emergency circuits remain operational for a specified period under fire conditions, which is essential for life safety systems such as emergency lighting and fire alarms.
-
Compact & Efficient Design: The construction omits a separate inner sheath, resulting in a more compact cable that is potentially lighter and more cost-effective while maintaining core protection through the armor and outer sheath.
-
Flexible & Corrosion-Resistant Armor: The braided armor of tinned copper wires provides excellent flexibility for easier installation, good tensile strength, and inherent corrosion resistance suitable for marine atmospheres.
-
Fire-Survival Core Construction: The Mica Glass Tape layer over XLPE insulation creates a robust, heat-resistant barrier that maintains electrical insulation integrity at extreme temperatures, preventing circuit failure during a fire.
-
Durable External Protection: A PVC outer sheath provides essential resistance to abrasion, moisture, oils, and general environmental exposure.

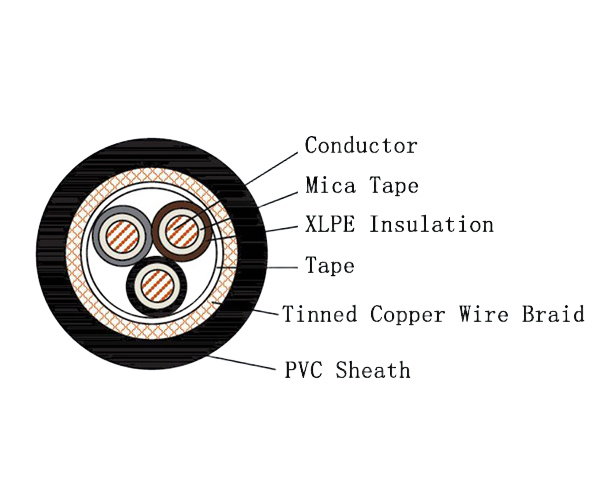

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | \ | None (No separate inner sheath) |
| Armour | 8 | Braid of Tinned or Plain Copper Wires |
| Outer Sheath | 2 | Polyvinyl Chloride (PVC) Outer Sheath |
| Flammability Class | NA | Fire Resistant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Armour | Braided Tinned/Plain Copper Wires |
| Outer Sheath | Polyvinyl Chloride (PVC) |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
This cable is designed and manufactured to meet key international standards for fire safety and marine applications:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Tests for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
Typical Applications
-
Marine & Offshore: Fixed emergency and power circuits on ships, barges, and in certain offshore areas where a compact, fire-resistant, and armored cable is required for routing in protected or semi-exposed locations (e.g., cable trays, along bulkheads).
-
Industrial: Power supply for essential machinery, safety systems, and backup circuits in industrial plants, mining, and infrastructure where fire resistance and mechanical protection are needed, and a simplified cable construction is acceptable for the installation environment.
