Product Overview
The CJPJP90/NC is a heavy-duty fire resistant marine cable engineered for the most demanding safety-critical installations where guaranteed circuit integrity under fire must be combined with extreme mechanical protection. It features a fire-survival core of Mica Glass Tape + XLPE insulation, an enhanced Cross-linked Polyolefin (SHF2) inner sheath for superior thermal and mechanical resistance, and a robust galvanized steel wire braid armor. This cable ensures vital emergency systems remain operational during a fire (IEC 60331) while providing unmatched defense against crushing, impact, and harsh environmental conditions in exposed or high-risk locations.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Ensures continuous operation of essential circuits (emergency lighting, fire pumps, alarms) under direct flame and mechanical shock, a critical requirement for life safety and asset protection.
-
High-Strength Steel Armor: A braided armor of galvanized steel wires provides maximum resistance to crushing, impact, and tensile stress, ideal for exposed cable runs or areas with severe physical hazards.
-
Enhanced Sheath Performance: The Cross-linked Polyolefin (SHF2) inner sheath offers outstanding resistance to high temperatures, deformation, and cracking, ensuring long-term sheath integrity in demanding environments.
-
Fire-Survival Core Construction: The Mica Glass Tape layer over XLPE insulation forms a robust, heat-resistant ceramic barrier, maintaining electrical insulation and preventing circuit failure during a fire.
-
Superior Fire Safety (LSZH): Complies with IEC 60754 (Halogen Free) and IEC 61034 (Low Smoke), drastically reducing the emission of corrosive/toxic gases and smoke density to facilitate safer evacuation.

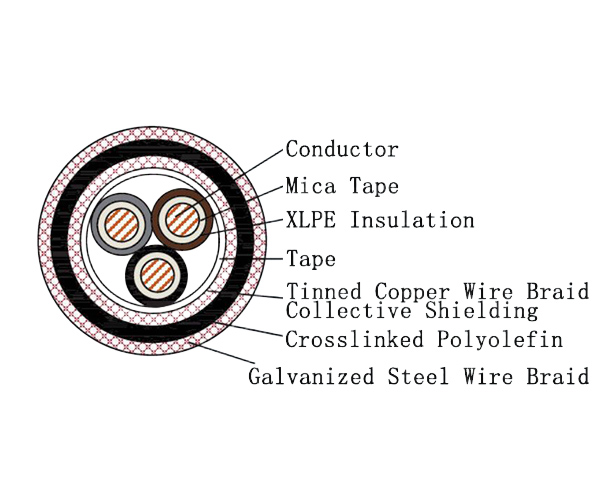

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) - Halogen Free, Low Smoke |
| Screen | P | Collective Copper Screen |
| Armour | 9 | Braid of Galvanized Steel Wires |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability Class | NC | Halogen Free, Low Smoke, Fire Resistant |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Cross-linked Polyolefin (SHF2) |
| Screen | Collective Copper Screen |
| Armour | Braided Galvanized Steel Wires |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 |
| Halogen Content | IEC 60754-1 (Halogen Free) |
| Smoke Density | IEC 61034-2 (Low Smoke) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
Manufactured to the highest international standards for fire safety and marine applications:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Tests for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
-
IEC 60754-1: Test on gases evolved during combustion (Halogen Free).
-
IEC 61034-2: Measurement of smoke density (Low Smoke).
Typical Applications
-
Marine & Offshore: Critical emergency and power circuits in high-risk, exposed areas on ships and offshore platforms such as engine rooms, pump rooms, open decks, and escape routes. Essential for fire pump systems, emergency generator feeds, and alarm circuits where both fire survival and maximum mechanical protection are required.
-
Heavy Industrial & Infrastructure: Power supply for life-safety and critical control systems in mining, tunnels, power plants, and heavy industrial facilities where cables are exposed to severe mechanical abuse and must maintain circuit integrity during a fire event.
