Product Overview
The CHEPJ85/SC is a flexible and safety-engineered marine communication cable that combines superior fire safety with flexible mechanical protection. Featuring EPR insulation, a flexible tinned copper wire braid armor, and a dual-layer Cross-linked Polyolefin (SHF2) sheath, this cable provides full Low Smoke Halogen Free (LSHF) Flame Retardant performance. It is designed for applications requiring both enhanced flexibility for installation and the highest standards of fire safety in demanding marine and industrial environments.
Key Features & Benefits
-
Optimal Flexibility & Protection: The tinned copper wire braid armor (8) offers excellent mechanical protection against impact and abrasion while maintaining superior flexibility, facilitating easier routing in confined spaces and around equipment compared to rigid steel armor.
-
Certified Fire Safety: Provides full Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties, minimizing toxic fumes and smoke density. Complies with IEC 60332 flame retardancy standards for enhanced safety.
-
Durable & Resilient Sheathing: The dual-layer Cross-linked Polyolefin (SHF2) sheath (PJ inner & 5 outer) offers exceptional resistance to abrasion, chemicals, oils, and environmental stress, ensuring long-term durability while preserving LSHF integrity.
-
Effective Grounding & Shielding: The continuous copper braid armor acts as an effective electromagnetic shield and provides a reliable equipment grounding conductor, enhancing overall circuit safety and performance.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

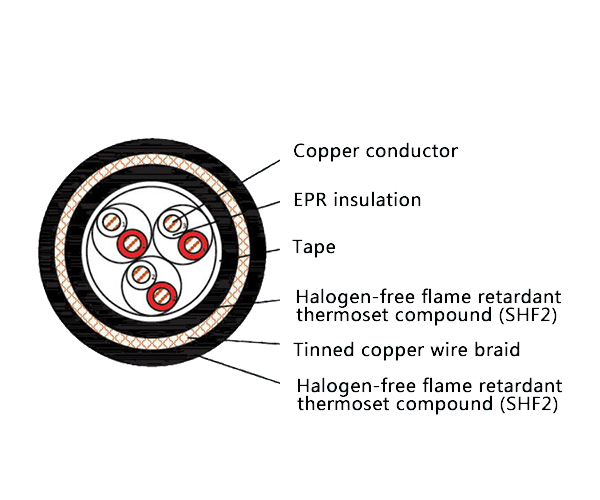

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This flexible armored LSHF cable is ideal for applications where ease of installation and fire safety are both critical:
-
Marine & Offshore: Instrumentation, control systems, and internal communications on ships and platforms, particularly in control rooms, console wiring, and areas requiring flexible routing around equipment while adhering to stringent LSHF safety codes.
-
Industrial & Infrastructure: Data acquisition, process control, and factory automation systems in power plants, chemical facilities, and public buildings where flexible, durable cabling with mandatory low smoke, zero halogen properties is required.
