Product Overview
The CEPJ/NC EPR Insulated Marine Power Cable is a premium-grade, non-armored safety cable designed for critical circuits where fire integrity, personnel safety, and long-term reliability are paramount. It features a mica glass tape and EPR insulated core for circuit continuity during fire (IEC 60331), protected by a robust cross-linked polyolefin (SHF2) outer sheath that delivers superior low-smoke, zero-halogen (LSZH) performance. This flexible construction is ideal for protected installations demanding the highest safety standards with minimal environmental hazard.
Key Applications
-
Marine & Offshore: Essential for emergency lighting, alarm systems, and control circuits within cable trays, conduits, or trunking in accommodation areas, control rooms, and bridge systems on ships and offshore platforms.
-
Safety-Sensitive Public & Commercial Infrastructure: The optimal choice for hospitals, data centers, airports, commercial high-rises, and public transportation hubs where circuits must remain operational during a fire while ensuring a safer escape environment free from corrosive smoke.
Compliance & Standards
This cable is manufactured to comply with a comprehensive suite of international safety and environmental standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Density: IEC 61034

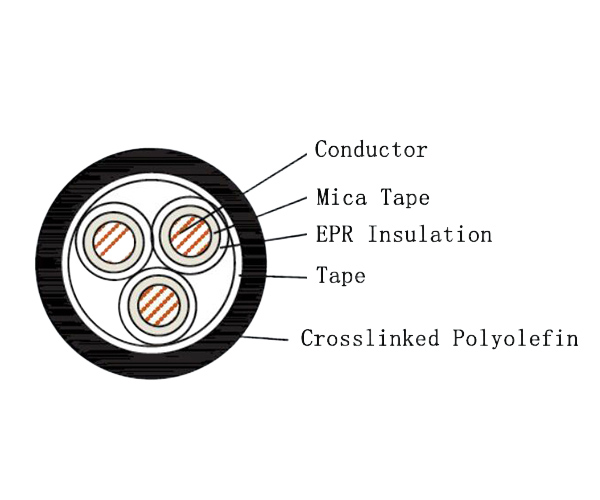

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Sheath | PJ | Cross-linked Polyolefin (SHF2 - Low Smoke Halogen Free) |
| Sheath Color | / | Standard Black (Other colors available) |
| Flammability | NC | Halogen Free, Low Smoke, Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
