Product Overview
The CEV80/NA EPR Insulated Armored Marine Power Cable is a specialized fire-resistant (IEC 60331) armored cable designed for critical circuits that must maintain operation during a fire. It features a mica glass tape and EPR insulated core for circuit integrity, a standard PVC inner sheath, and flexible tinned copper wire braid armor as the final protective layer. This construction provides reliable fire survival performance and mechanical protection for essential safety systems.
Key Applications
-
Marine & Offshore: Crucial for emergency power feeds, lighting, and control circuits in machinery spaces, pump rooms, and safety-critical areas on ships, oil platforms, and offshore installations.
-
Industrial Safety: Applicable in power plants, chemical facilities, and other industrial settings where circuits require both fire resistance and a degree of mechanical protection in fixed installations.
Compliance & Standards
This cable is designed and tested to meet key international standards for fire safety and electrical performance:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

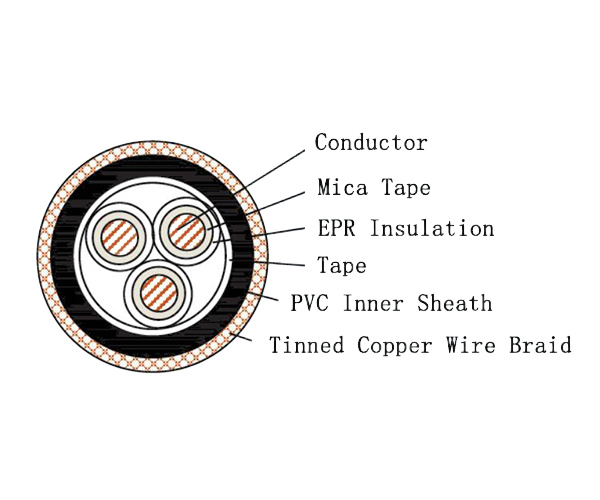

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Inner Sheath | V | PVC |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 0 | None (Armor serves as the final layer) |
| Flammability | NA | Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
