Product Overview
The CEPJ95/NC EPR Insulated Armored Marine Power Cable is the ultimate solution for critical circuits in the most extreme environments. It offers a fully-integrated safety design featuring fire resistance (IEC 60331) with mica/EPR insulation, advanced low-smoke, zero-halogen (LSZH) performance through a dual-layer cross-linked polyolefin (SHF2) sheath, and maximum physical protection from galvanized steel wire braid armor. This cable is built for unparalleled circuit integrity, environmental safety, and long-term durability against severe mechanical and chemical stresses.
Key Applications
-
Marine & Offshore: Designed for the most critical emergency power, control, and instrumentation circuits in engine rooms, pump rooms, and other high-risk zones on ships, oil platforms, and FPSOs where fire survival, personnel safety, and equipment longevity are non-negotiable.
-
Critical Infrastructure & Heavy Industry: The premier choice for nuclear power facilities, LNG plants, chemical processing units, and underground transit systems where circuits demand the highest levels of fire protection, minimal smoke emission, and robust defense against corrosion and mechanical damage.
Compliance & Standards
This cable is manufactured to exceed the most rigorous international safety and performance benchmarks:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Density: IEC 61034

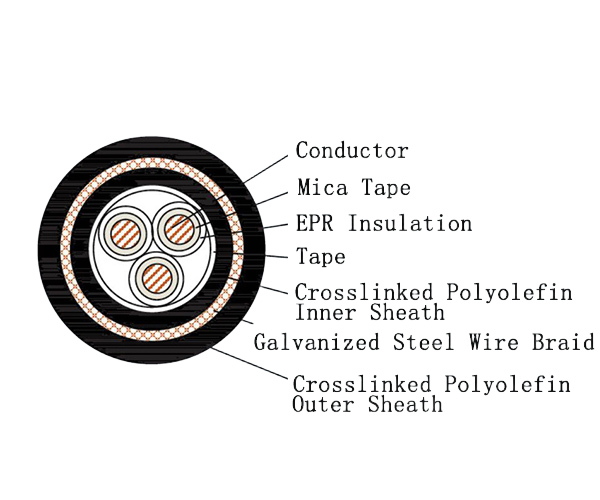

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2 - LSZH) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2 - LSZH) |
| Outer Sheath Color | / | Standard Black (Other colors available) |
| Flammability | NC | Halogen Free, Low Smoke, Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
