CEPJ90/NC 0.6/1kV Marine Cable | LSZH Fire Resistant, Steel Armor, SHF2 Sheath

IEC 60092-Series Cables HEPR/EPR Insulation Marine Shipboard Power Cables
Description

Product Overview

The CEPJ90/NC EPR Insulated Armored Marine Power Cable is engineered for the highest level of safety and durability in the most critical and physically demanding installations. It integrates fire resistance (IEC 60331), superior low-smoke, zero-halogen (LSZH) properties via a cross-linked polyolefin (SHF2) inner sheath, and robust galvanized steel wire braid armor. This design ensures circuit integrity during fire, provides a safer evacuation environment, and delivers exceptional protection against mechanical impact, crushing, and corrosion, ideal for exposed or high-risk areas.

Key Applications

  • Marine & Offshore: Indispensable for emergency feeders, essential service power, and critical control circuits in engine rooms, steering gear compartments, pump rooms, and other high-risk areas of ships, oil rigs, and offshore platforms.

  • High-Risk & Heavy-Duty Industrial: Perfect for power plants, chemical processing facilities, mining operations, and critical infrastructure where cables must survive fire, withstand severe physical abuse, and minimize hazardous smoke and gas emissions.

Compliance & Standards

This cable is certified to meet the most stringent international standards for fire performance, safety, and environmental impact:

  • Design: IEC 60092-350, IEC 60092-353

  • Conductor: IEC 60228

  • Insulation & Sheath: IEC 60092-360

  • Fire Resistance: IEC 60331

  • Flame Retardancy: IEC 60332-1, IEC 60332-3-22

  • Halogen Free: IEC 60754

  • Low Smoke Density: IEC 61034

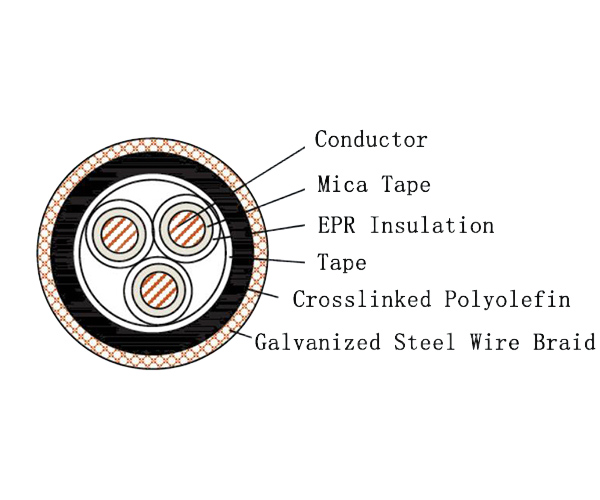

Construction & Materials

Item Code Material / Description
Series Code C Marine Power Cable
Conductor / Tinned or Plain Stranded, Annealed Copper Wire
Insulation E Mica Glass Tape + EPR (Fire-Resistant Layer)
Inner Sheath PJ Cross-linked Polyolefin (SHF2 - LSZH)
Armor 9 Galvanized Steel Wire Braid
Outer Sheath 0 None (Steel Armor serves as the final protective layer)
Flammability NC Halogen Free, Low Smoke, Fire Resistant

Technical Specifications

  • Rated Voltage: 0.6/1 kV

  • Maximum Conductor Temperature: 90°C

  • Available Cross-Section: 0.75 mm² to 300 mm²

  • Number of Cores: 1 to 37 Cores
