Product Overview
The CEPJ85/NC EPR Insulated Armored Marine Power Cable is a premium safety cable designed for the most demanding and environmentally sensitive critical circuits. It delivers enhanced protection through a double-layer, cross-linked polyolefin (SHF2) sheath system, ensuring superior low-smoke, zero-halogen (LSZH) performance and durability. Combined with a mica/EPR fire-resistant core and tinned copper wire braid armor, this cable guarantees circuit integrity during fire, exceptional environmental resistance, and flexible mechanical protection, making it ideal for long-term reliability in harsh conditions.
Key Applications
-
Marine & Offshore: Critical for emergency feeders, essential control circuits, and safety systems in high-value or confined areas of ships, offshore platforms, and FPSOs, such as engine rooms, bridge control systems, and generator spaces.
-
Demanding Industrial & Infrastructure: Suited for nuclear facilities, LNG plants, data centers, and public transit tunnels where circuits require maximum fire survival, minimal toxic emissions, and enhanced resistance to aging, chemicals, and mechanical stress.
Compliance & Standards
This cable is manufactured in full compliance with the highest international standards for fire safety and environmental impact:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Density: IEC 61034

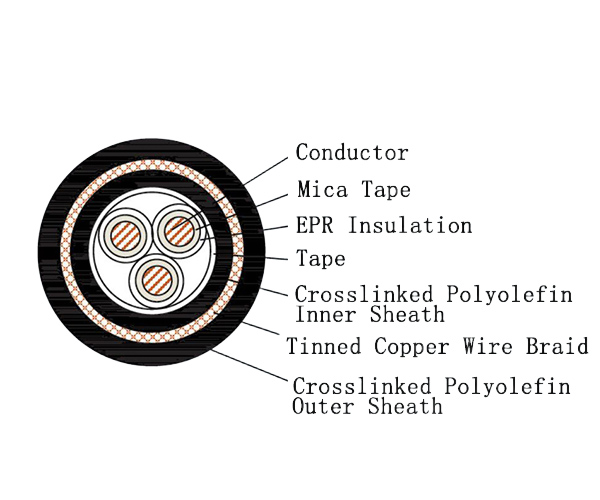

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2 - LSZH) |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2 - LSZH) |
| Outer Sheath Color | / | Standard Black (Other colors available) |
| Flammability | NC | Halogen Free, Low Smoke, Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
