Product Overview
The CEPJ80/NC EPR Insulated Armored Marine Power Cable is a high-performance safety cable designed for critical circuits where fire integrity and environmental safety are crucial. It features a mica glass tape and EPR insulated core for fire resistance (IEC 60331), an inner sheath made of cross-linked polyolefin (SHF2) for superior low-smoke, zero-halogen (LSZH) performance, and is armored with tinned copper wire braid for flexible yet effective mechanical protection. This construction is ideal for ensuring circuit continuity during emergencies while prioritizing personnel safety.
Key Applications
-
Marine & Offshore: Essential for emergency lighting, alarm systems, and critical power feeds in machinery spaces, control rooms, and evacuation routes on ships, oil platforms, and FPSOs.
-
Safety-Focused Industrial & Infrastructure: Perfect for power plants, chemical processing units, public transportation hubs, and commercial buildings where circuits must remain operational in fire conditions and emit minimal smoke and corrosive gases.
Compliance & Standards
This cable is manufactured to comply with a complete set of international fire safety and environmental standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Density: IEC 61034

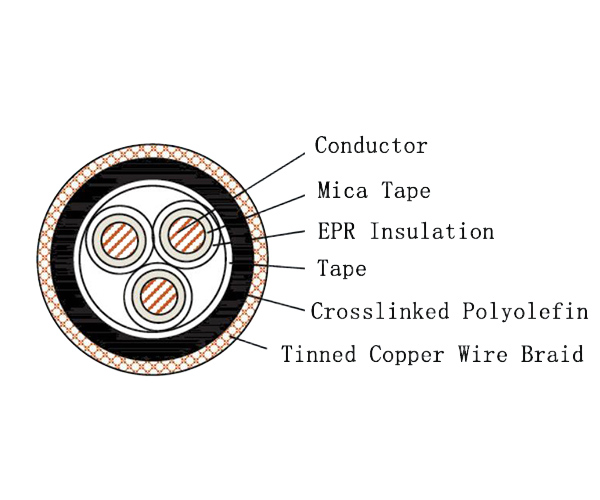

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2 - LSZH) |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 0 | None (Armor serves as the final layer) |
| Flammability | NC | Halogen Free, Low Smoke, Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
