Product Overview
The CEPF/NC EPR Insulated Marine Power Cable is a non-armored, fire-resistant, low-smoke zero-halogen (LSZH) cable designed for safety-critical circuits where flexibility, clean combustion, and fire integrity are paramount. It utilizes mica glass tape and EPR insulation to maintain circuit operation during fire, all protected by a single, durable SHF1 polyolefin outer sheath that ensures minimal emission of smoke and corrosive gases. This design is ideal for protected installations requiring the highest levels of personnel safety and circuit reliability.
Key Applications
-
Marine & Offshore: Perfect for emergency lighting, alarm systems, and control circuits within cable trays, conduits, or protected pathways in accommodation areas, control rooms, and evacuation routes on ships, oil platforms, and offshore structures.
-
Public Spaces & Sensitive Industrial Areas: Suited for hospitals, airports, metro stations, data centers, and industrial control rooms where circuits must remain functional in a fire while posing minimal hazard from smoke and acid gases, and where mechanical protection is provided by the installation method.
Compliance & Standards
This cable meets a comprehensive set of international standards for fire performance and environmental safety:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Density: IEC 61034

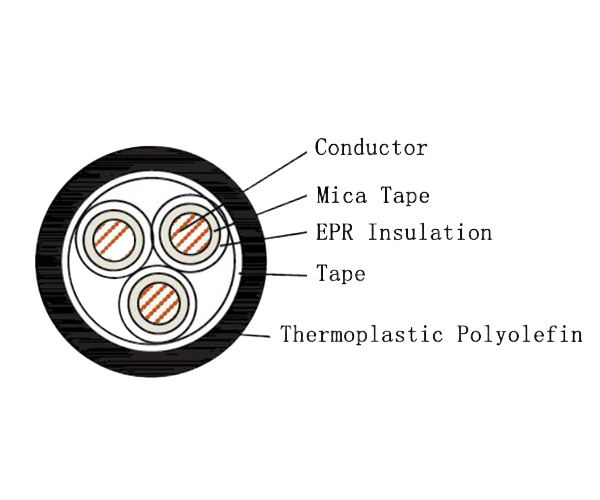

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Sheath | PF | Thermoplastic Polyolefin (SHF1 - Low Smoke Halogen Free) |
| Sheath Color | / | Standard Black (Other colors available) |
| Flammability | NC | Halogen Free, Low Smoke, Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
