Product Overview
The CEPF96/NC EPR Insulated Armored Marine Power Cable represents the pinnacle of integrated safety cable design for critical fixed installations. This fully-sheathed cable delivers unmatched protection by combining fire resistance (IEC 60331), low-smoke zero-halogen (LSZH) properties, and heavy-duty galvanized steel wire braid armor, all encased within dual SHF1 polyolefin sheaths. It is engineered to ensure circuit integrity during fire, provide a safer escape environment, and offer maximum resistance to mechanical damage and harsh conditions.
Key Applications
-
Marine & Offshore: Indispensable for emergency feeders, critical control circuits, and essential lighting systems in the most demanding areas of ships, oil rigs, and offshore platforms, such as engine rooms, generator flats, and evacuation routes.
-
Critical Public & Industrial Infrastructure: The optimal choice for nuclear facilities, metro/tunnel systems, data centers, power plants, and high-occupancy buildings where ultimate fire survival, personnel safety, and long-term durability under physical stress are required.
Compliance & Standards
Manufactured to the highest international benchmarks for safety and environmental performance:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Density: IEC 61034

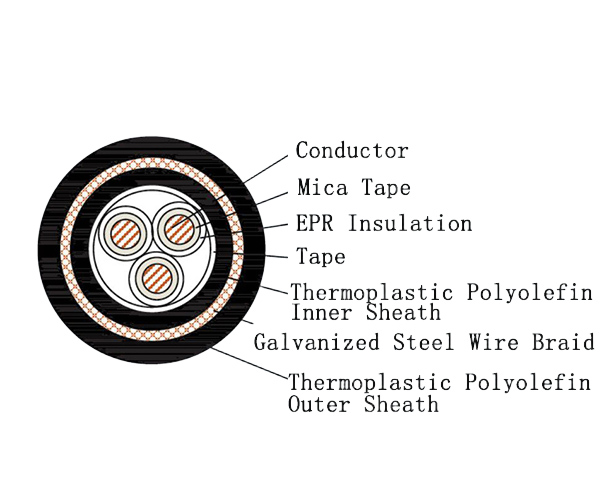

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Fire-Resistant Layer) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1 - LSZH) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1 - LSZH) |
| Outer Sheath Color | / | Standard Black (Other colors available) |
| Flammability | NC | Halogen Free, Low Smoke, Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
