CEV/SA EPR Insulated Marine Power Cable
Product Overview
The CEV/SA is a standard, non-armored marine power cable designed for reliable power distribution in fixed installations. Featuring durable EPR insulation and a PVC sheath, it offers a balance of flexibility, flame retardancy, and environmental protection for general shipboard and industrial circuits where extra mechanical armor is not required.
Key Applications
-
Marine & Offshore: Ideal for power, lighting, and control systems within protected areas of ships, oil platforms, and offshore structures.
-
General Industry: Well-suited for electrical installations in metallurgy, chemical plants, power stations, and mining operations where cables are installed in conduits, trays, or other protected routing.
Compliance & Standards
Manufactured in full compliance with international marine and safety standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22 (Category A for bunched installation)

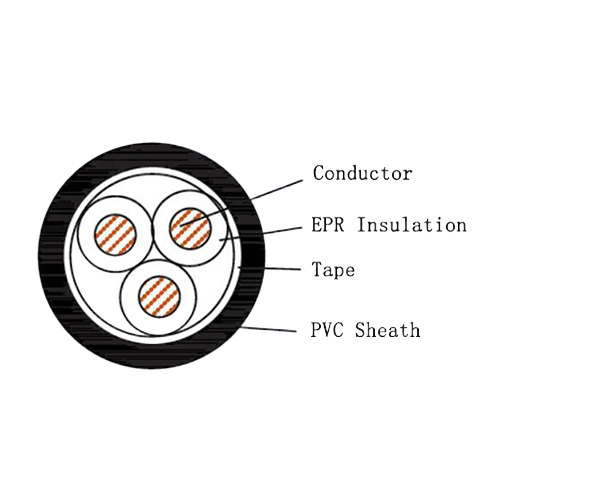

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Sheath | V | PVC |
| Sheath Color | / | Standard Black (Other colors available) |
| Flammability | SA | Flame Retardant for Bunched Cables |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
