CEV92/SA EPR Insulated Armored Marine Power Cable
Product Overview
The CEV92/SA is a fully-sheathed, galvanized steel wire armored marine power cable. It offers complete mechanical and environmental protection with its unique construction of an inner PVC sheath, steel wire braid armor, and a final PVC outer sheath. This design provides maximum durability for fixed installations in the most abrasive and corrosive environments.
Key Applications
-
Marine & Offshore: Critical for power, lighting, and control systems on ships, oil platforms, and offshore structures, especially in areas exposed to constant moisture, chemicals, oil, or severe mechanical stress.
-
Heavy Industry: Perfect for harsh settings in metallurgy, chemical plants, power generation, and mining, offering robust protection against impact, corrosion, and environmental degradation.
Compliance & Standards
This cable conforms to the essential international standards for marine electrical equipment:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

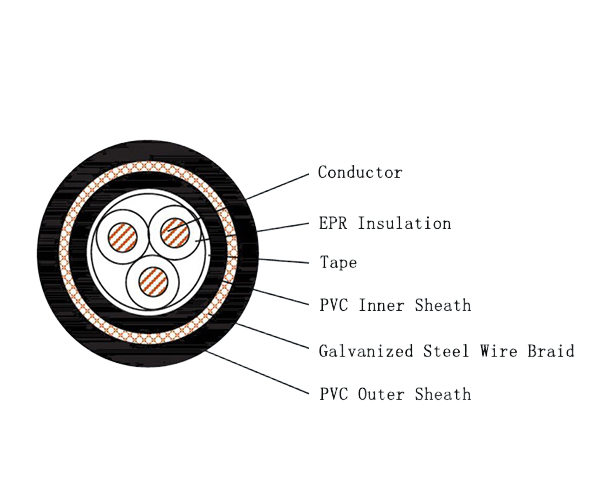

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | V | PVC |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC |
| Outer Sheath Color | / | Standard Black (Other colors available) |
| Flammability | SA | Flame Retardant for Bunched Cables |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
