CEPJ95/SC EPR Insulated Low-Smoke Halogen-Free Armored Marine Power Cable
Product Overview
The CEPJ95/SC represents a premium marine power cable engineered for the most demanding environments. It combines the electrical reliability of EPR insulation with the superior thermal and chemical resistance of a double-layer cross-linked polyolefin (SHF2) sheath, all protected by heavy-duty galvanized steel wire armor. This design ensures maximum durability, fire safety, and environmental resistance.
Key Applications
-
Power, lighting, and control circuits on offshore oil platforms and marine vessels
-
Critical installations where maximum mechanical protection and fire safety are required
-
Harsh environments in metallurgical, chemical, power generation, and mining industries
-
Applications mandating compliance with stringent low-smoke, halogen-free (LSZH) standards
Compliance & Standards
This cable is manufactured in full compliance with key international marine and safety standards:
-
IEC 60092-350, 353 – Shipboard and offshore cable design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and sheathing materials
-
IEC 60332-1 – Flame retardant test for a single vertical insulated wire/cable
-
IEC 60332-3-22 – Flame retardant test for bunched wires/cables

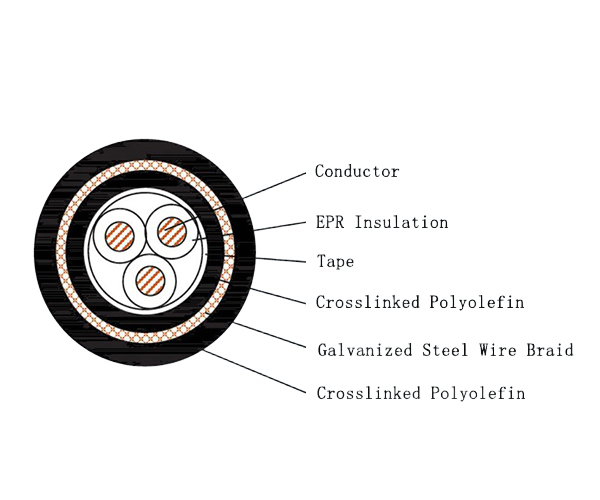

Cable Construction & Coding
| Component | Code | Material/Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) Insulated |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Working Temperature: 90°C
-
Conductor Cross-Section Range: 0.75 mm² to 300 mm²
-
Number of Cores Available: 1 to 37 cores
-
Insulation Material: EPR (Ethylene Propylene Rubber)
-
Sheathing Material: Double Layer, Cross-linked Polyolefin (SHF2)
-
Armor Type: Galvanized Steel Wire Braid
-
Flame Retardancy: Complies with IEC 60332-1 & IEC 60332-3-22
-
Key Safety Rating: Halogen Free Low Smoke Flame Retardant (SC)
