Product Overview

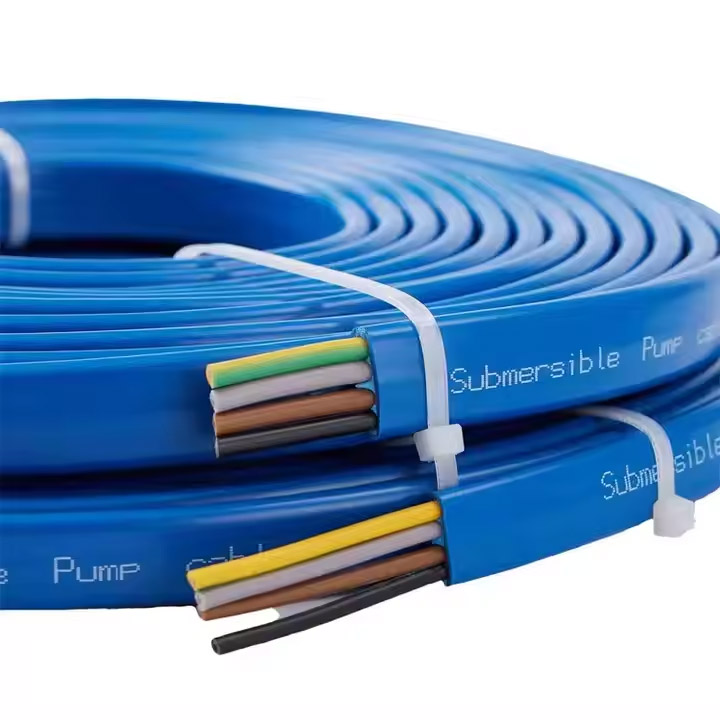

The PVC Submersible Water Pump Cable is a reliable and cost-effective solution for powering various types of submersible motors and equipment. Designed with high-quality PVC compounds, this cable offers excellent waterproof performance and is ideal for use as a power feeder for equipment operating underwater from land-based power sources. Its flexible construction and optional connectors make installation quick and efficient.
Key Specifications
-
Rated Voltage: 450/750V
-
Test Voltage: 3000V
-
Temperature Range: -10℃ to +70℃
-
Conductor: Oxygen-free copper, DIN VDE 0295 Class 5
-
Insulation: High-quality PVC mixture
-
Sheath: High-quality PVC mixture (Black/Blue)
Key Features & Benefits
-
Superior Waterproof Performance: Engineered as a dedicated waterproof cable for reliable submersion use.
-
Easy Installation: Optional waterproof connectors can be pre-installed on both ends to save significant installation time.
-
Excellent Flexibility: Fine-stranded Class 5 conductor allows for easy handling and routing.
-
Custom Lengths: Available in various lengths as per customer requirements.
-
Durable Construction: High-quality PVC materials ensure longevity in underwater environments.
Applications
-
Wiring for various types of submersible motors
-
Power supply for submersible water pumps
-
Power feeder for equipment working underwater
-
Agricultural and industrial pumping systems
Construction & Standards
| Component | Specification |
|---|---|
| Conductor | Oxygen-free copper, fine-stranded per DIN VDE 0295, Class 5 |
| Insulation | High-quality PVC mixture (color cores or code line) |
| Sheath | High-quality PVC mixture (Black) |
| Standards | DIN VDE 0295 |
Technical Data
| Parameter | Specification |
|---|---|
| Rated Voltage | 450/750V |
| Test Voltage | 3000V |
| Operating Temperature Range | -10℃ to +70℃ |
| Conductor Standard | DIN VDE 0295 Class 5 |
