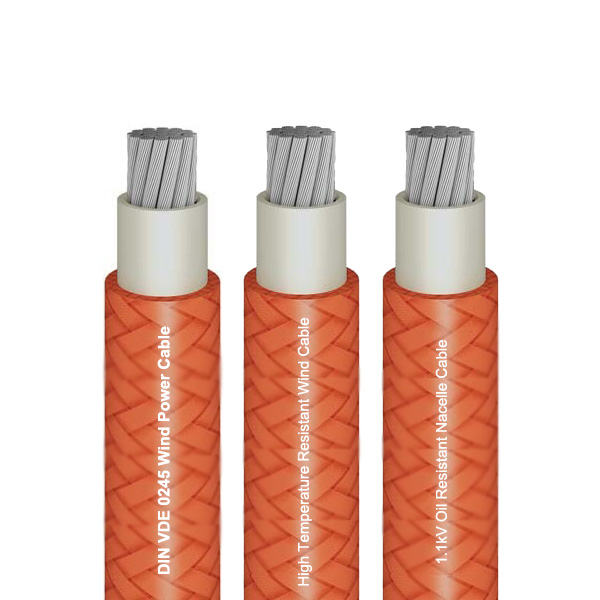

Product Overview
Wind Nacelle Cable is specifically engineered for connecting generators to transformers within wind turbine nacelles. Designed to withstand extreme temperatures and oil exposure, this cable delivers reliable performance in demanding wind energy applications with superior flexibility and durability.
Applications
-
Generator to transformer connections in wind turbine nacelles
-
High-temperature wind power applications
-
Oil-resistant electrical connections
-
Wind energy generation systems
-
Nacelle power distribution
-
Renewable energy infrastructure
Construction
| Component | Specification |
|---|---|
| Conductor | Flexible tinned annealed copper, class 5 per IEC 60228 |
| Cross Section | 1.5 ~ 300 mm² |
| Separate Tape | Polyester film |
| Insulation | Silicone |
| Braid | PUR vanished synthetic yarn braid |
Technical Data
| Parameter | Specification |
|---|---|
| Rated Voltage | Uo/U 1.1kV |
| Test Voltage | 3.5kV |
| Temperature Range | -50°C to +180°C |
| Minimum Bending Radius | 6 × Cable Diameter |
Product Dimensions & Weight
| Core Number × mm² | Outer Diameter (mm) | Weight (kg/km) |
|---|---|---|
| 1×1.5 | 6.2 | 27 |
| 1×2.5 | 6.7 | 48 |
| 1×4 | 7.2 | 76 |
| 1×6 | 7.9 | 109 |
| 1×10 | 8.9 | 169 |
| 1×16 | 10.6 | 311 |
| 1×25 | 12.1 | 464 |
| 1×35 | 13.4 | 635 |
| 1×50 | 15.2 | 871 |
| 1×70 | 17.1 | 1189 |
| 1×95 | 18.9 | 1539 |
| 1×120 | 21.2 | 2050 |
| 1×150 | 23.1 | 2546 |
| 1×185 | 25.4 | 3184 |
| 1×240 | 27.7 | 3930 |
| 1×300 | 27.9 | 4094 |
Key Features
-
Extreme Temperature Range: -50°C to +180°C operation
-
Oil Resistant Construction: Suitable for lubricated environments
-
High Flexibility: Class 5 stranded copper conductor
-
Silicone Insulation: Superior thermal and electrical properties
-
PUR Braid Protection: Enhanced mechanical durability
-
Compact Design: Optimized for space-constrained nacelle installations
