Product Overview

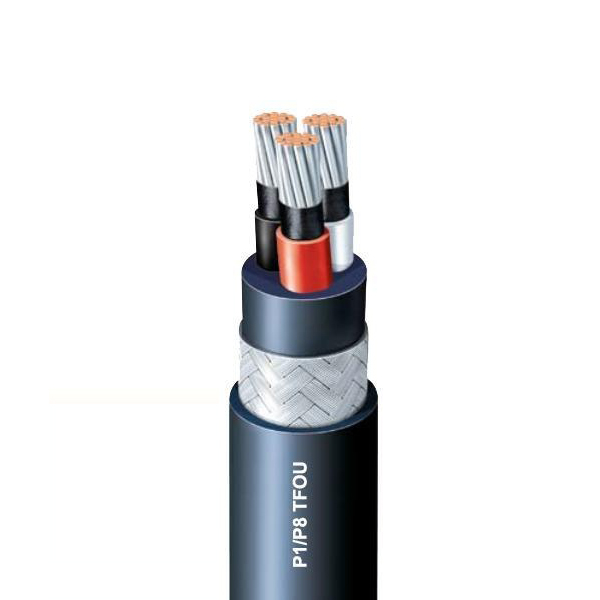

P1/P8 TFOU 0.6/1KV offshore low voltage power cables are engineered for reliable electrical power transmission in demanding marine environments. Certified to NEK 606 standards, these cables provide superior flame retardancy, low smoke emission, halogen-free operation, and mud resistance for enhanced safety on offshore installations.
Key Applications
-
Drilling ships & drilling platforms (Jack up, Semi-submersible)
-
Production Platforms (TLP, Semi-submersible, SPAR, Fixed platforms)
-
FPSO/FSO vessels
-
Offshore low voltage power distribution systems
-
Marine and coastal electrical infrastructure
Technical Standards & Certifications
-
Primary Standard: NEK 606
-
Safety Performance: Flame retardant, Low smoke, Halogen free
-
Environmental Rating: Mud resistant
-
Voltage Rating: 0.6/1 kV

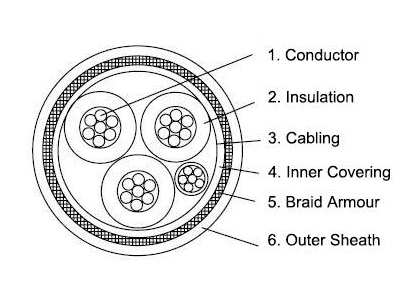

Cable Construction
| Layer | Component | Specification |
|---|---|---|
| 1 | Conductor | Circular tinned stranded copper in accordance with IEC 60228 |
| 2 | Insulation | Cross-linked Polyethylene (XLPE) |
| 3 | Cabling | Cores are laid up together and wrapped by polyester tape |
| 4 | Inner Covering | Halogen-free flame retardant compound |
| 5 | Braid Armour | Tinned copper wire braid in accordance with IEC 60092-350 |
| 6 | Outer Sheath | Halogen-free thermoset compound in accordance with type SHF Mud |
Construction Features
-
High-Quality Conductor: Circular tinned stranded copper per IEC 60228
-
Advanced Insulation: Cross-linked Polyethylene (XLPE) for electrical reliability
-
Reinforced Protection: Tinned copper wire braid armour per IEC 60092-350
-
Safety Sheath: Halogen-free thermoset compound with mud resistance (SHF Mud)
-
Internal Protection: Halogen-free flame retardant inner covering
Safety & Performance Characteristics
-
Flame Retardant: Meets strict offshore fire safety requirements
-
Low Smoke Emission: Minimal smoke generation for enhanced visibility
-
Halogen Free: Eliminates toxic gas emission in fire situations
-
Mud Resistant: Specifically designed for offshore drilling environments
-
Corrosion Resistant: Tinned components protect against saltwater corrosion
Industry Compliance
-
Fully compliant with NEK 606 standards
-
Meets IEC 60228 and IEC 60092-350 requirements
-
Suitable for global offshore and marine applications
-
Engineered for maximum safety and reliability in low voltage power systems
Key Benefits
-
Enhanced safety with flame-retardant and halogen-free construction
-
Reliable performance in extreme offshore conditions
-
Mud-resistant sheath for drilling platform applications
-
Reduced smoke emission for improved evacuation safety
-
Corrosion-resistant materials for extended service life
-
Compliance with international marine and offshore standards
Note: This low voltage offshore power cable is specifically engineered for critical power transmission applications where fire safety, environmental resistance, and mud protection are paramount. All construction materials and methods comply with international offshore standards for low voltage applications.
