Product Overview
The CEV82/SA is a robust and shielded marine power cable designed for fixed installations requiring reliable electrical performance, complete mechanical protection, and effective electromagnetic interference (EMI) shielding. Featuring durable Ethylene Propylene Rubber (EPR) insulation, a double-layer PVC sheath system, and tinned copper wire braid armor, it provides a fully protected solution for power, lighting, and control circuits in demanding marine and industrial environments.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

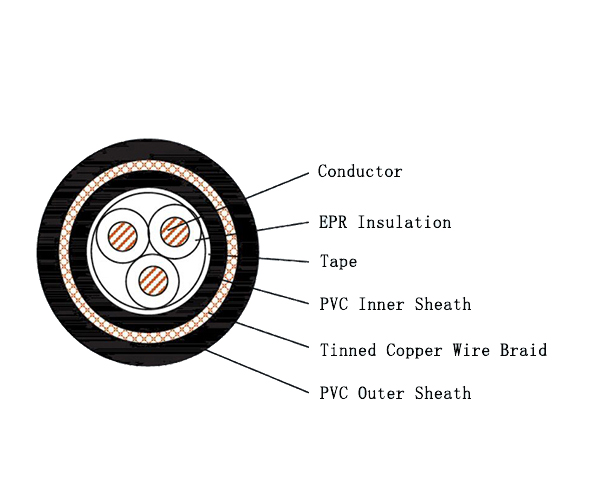

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR insulated |
| Inner Sheath | V | PVC |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Outer Sheath Color | / | Black or other Color |
| Flammability | SA | Bunched Cables Flame Retardant |
Key Performance Characteristics
-
Superior EPR Insulation: Ethylene Propylene Rubber (EPR) provides excellent dielectric strength, thermal stability, and long-term resistance to heat and moisture, ensuring reliable power transmission.
-
Complete Sheath Protection: Features a full dual-sheath system (inner and outer) made of PVC, offering a robust barrier against mechanical damage, moisture, oils, and chemicals.
-
Effective EMI Shielding: The tinned copper wire braid armor provides reliable protection against electromagnetic interference (EMI), safeguarding sensitive control and power circuits.
-
Bunched Flame Retardancy (SA): Complies with IEC 60332-1 and IEC 60332-3-22 for flame retardancy when installed in bunched configurations, helping to inhibit the spread of flame.
Standards & Compliance
This cable is designed and manufactured in accordance with key international marine standards:
-
IEC 60092-350, 353 (General construction and tests)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy tests)
Typical Applications
This cable is suitable for fixed installations where full mechanical protection and EMI shielding are required:
-
Marine & Offshore: Power, lighting, and control system wiring for machinery, auxiliary systems, and general shipboard applications on vessels and offshore platforms.
-
Industrial: Power distribution and control circuits in industrial plants where enhanced durability and EMI protection are beneficial.
