Product Overview
The CKJV/SA is a reliable and economical marine control cable designed for a wide range of power, lighting, and general control circuits. It features durable XLPE (Cross-linked Polyethylene) insulation and a standard PVC outer sheath, offering a proven balance of performance, flexibility, and cost-effectiveness. This cable meets the essential flame retardant requirements per IEC 60092 standards and is suitable for fixed installations on ships, offshore structures, and in various industrial settings where basic flame retardancy is required.
Key Features & Benefits
-
Cost-Effective & Reliable: Provides a robust and economical wiring solution for standard control and power applications, utilizing widely accepted materials (XLPE and PVC) known for their durability and performance.
-
Certified Flame Retardancy: Complies with IEC 60332 standards for flame retardancy, ensuring safety for bunched cable installations in control panels, conduits, and cable trays.
-
Durable & Easy to Install: The PVC sheath offers good mechanical protection, chemical resistance, and flexibility for straightforward handling and installation. XLPE insulation ensures stable electrical performance at temperatures up to 90°C.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Sheath Color: Black (other colors available upon request).

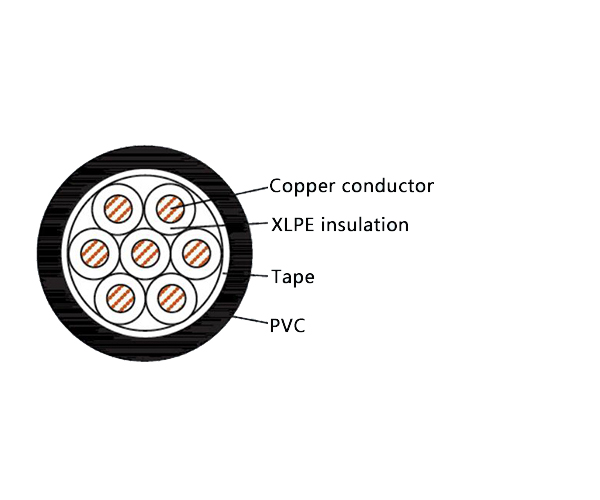

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Sheath | V | Polyvinyl Chloride (PVC) |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
This cable is designed and tested in accordance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This cable is a versatile choice for general-purpose control and power circuits where advanced features like screening or armor are not required.
-
Marine & Offshore: General lighting, auxiliary power distribution, and basic control circuits on ships, workboats, and offshore structures.
-
Industrial Plants: Non-critical control wiring, power supplies for machinery, and lighting circuits in general manufacturing, warehouses, and industrial facilities.
