Product Overview
The CHJV90/SA is a robust and reliable Flame Retardant Marine Communication Cable designed for fixed installations. Featuring durable Cross-Linked Polyethylene (XLPE) insulation and a protective Galvanized Steel Wire Braid armor, it is engineered to deliver secure signal transmission in demanding environments onboard ships, offshore platforms, and in heavy industries. This cable complies with key international marine standards, including the IEC 60092 series.
Key Features & Benefits
-
Durable XLPE Insulation: Provides excellent electrical properties, high thermal resistance (up to 90°C), and superior mechanical and aging performance compared to standard polyethylene.
-
Mechanical Protection: The Galvanized Steel Wire Braid Armor (Code 9) offers high resistance to impact, crushing, and mechanical stress, safeguarding the cable core in demanding applications.
-
Flame Retardant Safety: Certified to IEC 60332-1 (single wire) and IEC 60332-3-22 (bunched cables) flame test standards, helping to inhibit the spread of fire along cable runs.
-
Versatile Construction: The "0" code indicates no separate outer sheath over the armor, making it suitable for installations where the armored cable is drawn into conduits, trays, or protected ducts.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

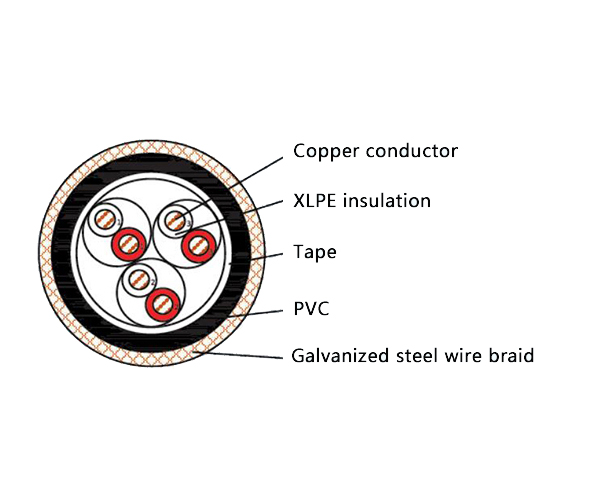

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Material Safety: Note: The listed IEC 60754 (Halogen Free) and IEC 61034 (Low Smoke) standards pertain to material characteristics. This standard PVC-based version is designed for flame retardancy. For environments requiring Halogen-Free Low Smoke (LSHF) properties, please consult our dedicated LSHF product lines.
Typical Applications
This armored, flame-retardant cable is suitable for use in:
-
Telecommunication, instrumentation, computer, and data processing systems on marine vessels and offshore constructions (e.g., oil & gas platforms).
-
Control and communication networks in demanding industrial plants such as power stations, chemical plants, metallurgy facilities, and mining operations, especially where mechanical protection is a priority.
