Product Overview
The CHEV90/NA is a robust, Fire Resistant marine communication cable designed for critical applications requiring both certified circuit integrity during a fire and superior mechanical protection. It combines a mica-reinforced EPR insulated core with a PVC inner sheath and a heavy-duty galvanized steel wire braid armor. This construction provides essential defense against impact, crushing, and tension, making it ideal for protecting vital safety circuits in exposed or high-risk areas onboard vessels, offshore platforms, and within industrial plants, all while ensuring operation per IEC 60331 under fire conditions.
Key Features & Benefits
-
Fire Survival with Mechanical Durability: Delivers certified Fire Resistance (IEC 60331) alongside the exceptional physical protection of a galvanized steel wire braid armor, safeguarding critical alarm and communication circuits from both fire and mechanical damage.
-
Optimized for Conduit & Protected Routing: The armored design with a single PVC inner sheath is engineered for installation within cable conduits, trunking, or protected trays where external abrasion is a concern, providing reliable performance without an additional outer sheath.
-
Rugged & Reliable Construction: The mica/EPR insulation ensures thermal stability and fire integrity, while the steel armor offers proven resistance to crushing, rodent attacks, and incidental impact.
-
Industry Standard Compliance: Manufactured in accordance with the IEC 60092 series for marine applications and key fire safety standards, ensuring global acceptance for mission-critical installations.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

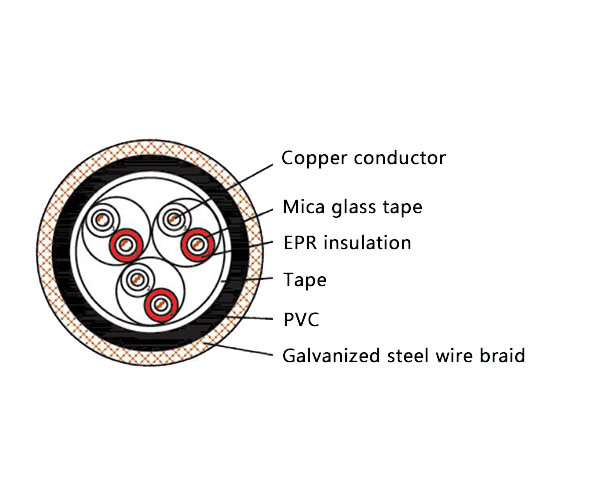

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + Ethylene Propylene Rubber (EPR) |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
Applications
This armored fire-resistant cable is specifically designed for critical safety circuits that require mechanical protection:
-
Protected routing for emergency systems such as fire alarms, engine room controls, and essential communications on ships, workboats, and offshore installations.
-
Critical instrumentation and control wiring in industrial plants (power, chemical, mining) where cables are run in trays or conduits and must be shielded from physical damage while maintaining fire circuit integrity.
