Product Overview
The CJVP80/SA is a reliable and cost-effective marine power cable designed for general-purpose applications where robust EMI protection, flexibility, and essential flame retardancy are required. It features durable XLPE insulation paired with a standard PVC inner sheath, providing a balance of performance and value. Its defining characteristic is the flexible, braided armor made of tinned copper wires, which offers excellent corrosion resistance, ease of handling, and reliable earth continuity. This shielded cable is an ideal solution for fixed installations in various marine and industrial environments where standard flame-retardant properties are sufficient.
Key Features & Benefits
-
Flexible & Corrosion-Resistant Armor: The braided armor of tinned copper wires provides superior flexibility for easy installation and routing, along with excellent resistance to corrosion in humid and saline atmospheres.
-
Standard Flame Retardancy: Meets IEC flame retardant standards (SA grade) for bunched cables, ensuring the cable circuit integrity and preventing flame propagation under defined conditions.
-
Stable & Durable Electrical Core: XLPE (Cross-Linked Polyethylene) insulation ensures high dielectric strength and long-term thermal stability for continuous operation at 90°C.
-
Cost-Effective Protection: Utilizes a proven PVC inner sheath, offering good mechanical and environmental protection at a competitive price point for non-halogen-free applications.
-
Effective EMI Shielding: The collective copper screen protects against electromagnetic interference, safeguarding the integrity of power and control signals.

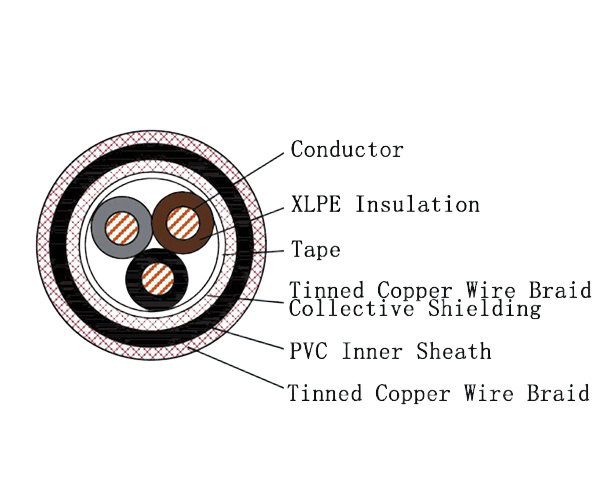

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Collective Copper Screen |
| Armour | 8 | Braid of Tinned or Plain Copper Wires |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability Class | SA | Bunched Cables Flame Retardant |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Polyvinyl Chloride (PVC) |
| Screen | Collective Copper Screen |
| Armour | Braided Tinned/Plain Copper Wires |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
This cable is designed and manufactured in accordance with the following international standards:
-
IEC 60092-350, 353: Electrical installations in ships – General construction and test methods.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60332-1: Test for vertical flame propagation for a single wire/cable.
-
IEC 60332-3-22: Test for vertical flame spread of bunched cables – Category A.
Typical Applications
-
Marine & Offshore: General power, lighting, and auxiliary control circuits on ships, barges, and in certain areas of offshore platforms where flexible, corrosion-resistant armor is beneficial, and halogen-free materials are not specifically mandated.
-
Industrial: Power distribution in industrial plants, manufacturing facilities, and infrastructure projects where standard flame retardancy, EMI protection, and the durability of flexible armored cable are required.
