Product Overview
The CJPFR96/SC represents a high-performance, halogen-free, and flame-retardant marine flexible power cable engineered for demanding applications requiring maximum mechanical protection alongside excellent flexibility. It features fine-stranded Class 5/6 conductors, XLPE insulation, galvanized steel wire armor, and a complete dual-sheath system. This robust construction ensures superior resistance to impact, abrasion, and environmental factors, making it the ideal choice for exposed, high-traffic, or harsh routing paths on vessels and offshore installations.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Class 5/6 (Fine Strand) Tinned Annealed Copper Wire (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

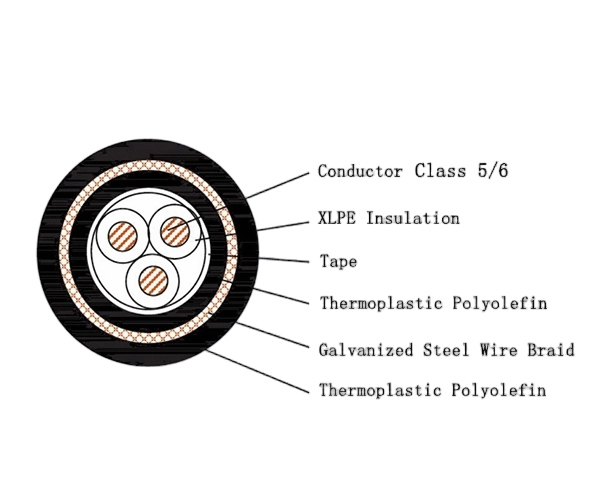

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Class 5/6(R) Tinned Annealed Copper Wire |
| Insulation | J | XLPE Insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin(SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin(SHF1) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Key Performance Characteristics
-
Maximum Mechanical Protection: The combination of a galvanized steel wire armor and a tough outer sheath provides exceptional defense against crushing, impact, abrasion, and rodent damage, offering the highest level of physical protection in its series.
-
Enhanced Flexibility: Utilizes fine-stranded (Class 5/6) tinned copper conductors, ensuring the cable remains highly flexible and easy to install in tight spaces and complex cable trays despite its robust armored construction.
-
Comprehensive Fire Safety: Designed to be flame retardant (IEC 60332-1 & -3-22), halogen-free, and low-smoke, minimizing flame spread and reducing the emission of corrosive gases and opaque smoke in fire scenarios, critical for confined marine spaces.
-
Environmental & Chemical Resistance: The full thermoplastic polyolefin (SHF1) sheath system offers excellent resistance to moisture, oils, and many chemicals commonly found in marine and industrial environments.
-
Reliable Thermal Performance: XLPE insulation ensures long-term electrical integrity, high insulation resistance, and stable performance at continuous temperatures up to 90°C.
Standards & Compliance
This cable is manufactured in strict compliance with international marine and safety standards:
-
IEC 60092-350, 353 (General construction and tests for shipboard power cables)
-
IEC 60228 (Conductors of insulated cables)
-
IEC 60092-360 (Insulating and sheathing materials)
-
IEC 60332-1 & IEC 60332-3-22 (Tests for vertical and large-scale flame propagation)
Typical Applications
This fully sheathed and armored flexible cable is specifically designed for the most challenging fixed and flexible installations where maximum durability is required:
-
Marine & Offshore: Ideal for exposed deck wiring, engine room power feeds, connections to heavy machinery, and critical circuits on offshore oil & gas platforms where cables are subject to constant vibration, potential impact, and harsh conditions.
-
Heavy Industry: Suitable for power and control applications in mining, metallurgy, and large-scale plant operations where cables must withstand severe mechanical stress, frequent movement, or be installed in abrasive environments.
