Product Overview
The CJPJP/SC is a specialized, high-performance unarmored marine power cable designed for fixed installations where superior thermal/mechanical performance from the sheath material and excellent EMI protection are required, without the need for metallic armor. Its defining feature is the Cross-linked Polyolefin (SHF2) inner sheath, which provides enhanced resistance to heat deformation and mechanical stress compared to standard thermoplastic sheaths. Combined with XLPE insulation and a collective copper screen, this lightweight and flexible cable is the ideal choice for protected routes where fire safety, signal integrity, and long-term sheath durability are priorities.
Key Features & Benefits
-
Advanced Inner Sheath Material: Utilizes a Cross-linked Polyolefin (SHF2) inner sheath, offering superior resistance to high temperatures, cracking, and deformation for improved long-term reliability in challenging environments.
-
Maximum Flexibility & Lightweight: The unarmored (no metallic armor) construction ensures excellent flexibility and ease of handling, reducing installation time and weight, ideal for cable trays, conduits, and tight spaces.
-
Essential Fire Safety: All materials are Halogen-Free and Low-Smoke (LSZH), minimizing the release of toxic/corrosive gases and smoke density to enhance safety during fire incidents.
-
Stable Electrical Performance: XLPE (Cross-Linked Polyethylene) insulation provides reliable electrical characteristics and thermal endurance for continuous operation at 90°C.
-
Effective EMI Shielding: The integrated collective copper screen protects power and control signals from electromagnetic interference (EMI), ensuring system integrity in sensitive applications.

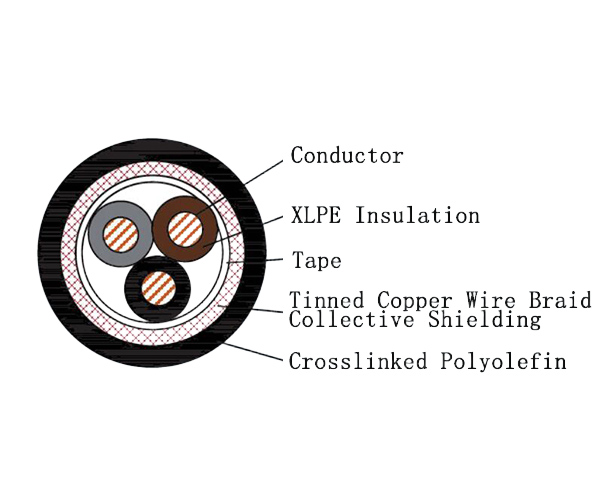

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) - Halogen Free, Low Smoke |
| Screen | P | Collective Copper Screen |
| Flammability Class | SC | Halogen Free, Low Smoke, Flame Retardant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Cross-linked Polyolefin (SHF2) |
| Screen | Collective Copper Screen |
| Armour | None (Unarmored) |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
Manufactured in compliance with key international marine and safety standards:
-
IEC 60092-350, 353: Electrical installations in ships – General construction and test methods.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60332-1: Test for vertical flame propagation for a single wire/cable.
-
IEC 60332-3-22: Test for vertical flame spread of bunched cables – Category A.
Typical Applications
-
Marine & Offshore: Power, lighting, and control circuits within protected enclosures, cable trays, or conduits on ships and offshore platforms, especially in areas with higher ambient temperatures where the enhanced properties of the SHF2 sheath are beneficial.
-
Industrial & Plant: Reliable power distribution in industrial facilities such as power plants, chemical processing units, and manufacturing plants where EMI protection, enhanced sheath durability, and fire safety are required, and cables are installed in controlled, low-mechanical-risk environments.
