Product Overview
LiYCY Wind Data Cable is specifically designed for electronic, computer, measurement, and control applications in wind energy systems. Featuring reliable tinned copper braid shielding and durable PVC construction, this cable ensures accurate data transmission for critical monitoring and control systems in wind turbine operations.
Key Features & Benefits
-
Reliable EMI Protection: Tinned copper wire braid shielding ensures excellent electromagnetic interference protection
-
Wide Temperature Range: Suitable for fixed installations from -40°C to +80°C
-
Flexible Installation: Multiple bending radius options for both fixed and flexing applications
-
Stable Electrical Performance: Low mutual capacitance and high insulation resistance ensure signal integrity
-
Durable Construction: PVC insulation and outer sheath provide robust environmental protection
-
Multiple Configurations: Available in various core configurations from 2 to 36 cores
Applications
Electronic and data transmission applications in wind energy systems:
-
Wind Turbine Monitoring: Data transmission for turbine monitoring systems
-
Measurement Systems: Precision measurement applications in wind energy
-
Control Circuits: Electronic control systems within wind turbines
-
Computer Systems: Data communication for wind turbine computer networks
-
Electronic Equipment: Connections for various electronic devices in wind power applications

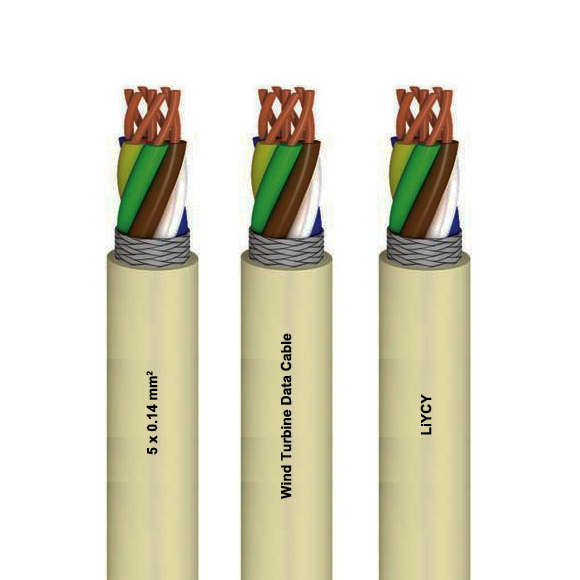

Construction
Reliable Data Cable Construction:
-
Conductor: Bare copper wire stranded conductor
-
Insulation: PVC
-
Shielding: Screen made of tinned copper wire braid
-
Outer Sheath: PVC
Technical Data
Electrical & Mechanical Specifications:
-
Mutual Capacitance:
-
Core/Core: Approximately 140 nF/km
-
Core/Shield: Approximately 150 nF/km
-
-
Peak Working Voltage: 250V
-
Specific Insulation Resistance: >20 GΩ·cm
-
Inductivity: Approximately 0.65 mH/km
-
Minimum Bending Radius:
-
Flexing: 15 × Cable Diameter
-
Fixed: 6 × Cable Diameter
-
-
Test Voltage:
-
0.14mm²: 1200V
-
0.14mm²: 1500V
-
-
Temperature Range: Fixed: -40°C to +80°C
Product Specifications
Detailed Product List:
| Core Number × Cross Section | Outer Diameter | Copper Content | Approximate Weight |
|---|---|---|---|
| mm² | mm | kg/km | kg/km |
| 2×0.14 | 3.9 | 12.1 | 20 |
| 3×0.14 | 4.1 | 13.1 | 28 |
| 4×0.14 | 4.3 | 14.3 | 33 |
| 5×0.14 | 4.6 | 15.5 | 38 |
| 6×0.14 | 4.9 | 18.2 | 38 |
| 7×0.14 | 4.9 | 19.1 | 49 |
| 8×0.14 | 5.8 | 21.2 | 56 |
| 10×0.14 | 6.1 | 28.5 | 66 |
| 12×0.14 | 6.3 | 30.4 | 78 |
| 14×0.14 | 6.7 | 32.1 | 80 |
| 15×0.14 | 6.9 | 37.8 | 86 |
| 16×0.14 | 7.1 | 43.1 | 90 |
| 18×0.14 | 7.3 | 48.8 | 104 |
| 20×0.14 | 7.7 | 53.9 | 116 |
| 21×0.14 | 7.9 | 55.5 | 121 |
| 25×0.14 | 8.4 | 63.1 | 149 |
| 28×0.14 | 8.5 | 66.1 | 153 |
| 30×0.14 | 8.7 | 69.1 | 158 |
| 32×0.14 | 9.1 | 73.6 | 164 |
| 36×0.14 | 9.3 | 83.1 | 183 |
Key Advantages
-
Proven Reliability: Specifically designed for data transmission in wind energy applications
-
Superior Shielding: Tinned copper braid provides excellent protection against electromagnetic interference
-
Stable Performance: Consistent electrical characteristics ensure accurate data transmission
-
Environmental Durability: Suitable for wide temperature ranges encountered in wind turbine environments
-
Flexible Installation Options: Accommodates both fixed and limited flexing applications
-
Comprehensive Size Range: Multiple core configurations to suit various data transmission requirements
-
Cost-Effective Solution: PVC construction provides reliable performance at competitive pricing
