Product Overview

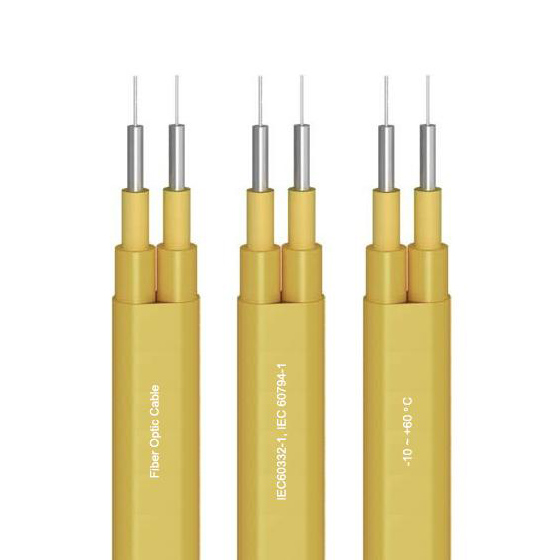

Nacelle Fiber Optic Cable is specifically engineered for critical control and monitoring systems within wind turbine nacelles. Designed for remote control of rotor speed, pitch angle, and temperature monitoring, this compact LSZH cable provides reliable data transmission in the confined spaces of wind power nacelles while ensuring enhanced safety with low smoke zero halogen materials.
Key Features & Benefits
-
Multiple Fiber Options: Available in SM 9/125, MM 50/125, and MM 62.5/125 for versatile application compatibility
-
Compact Design: Optimized 3.8mm x 6.6mm oval diameter for easy routing in confined nacelle spaces
-
Enhanced Safety: LSZH (Low Smoke Zero Halogen) construction ensures safety in case of fire
-
Reliable Performance: 400N tensile strength withstands installation stresses and operational loads
-
Critical Control Capability: Specifically designed for rotor speed, pitch angle, and temperature remote control
-
Optimized Flexibility: 35mm bending radius facilitates easy installation in complex nacelle layouts
Applications
Critical control and monitoring applications in wind power nacelles:
-
Rotor Speed Control: Remote monitoring and control of turbine rotor speed
-
Pitch Angle Adjustment: Precise control of blade pitch angle systems
-
Temperature Monitoring: Critical temperature data transmission from nacelle systems
-
Wind Turbine Nacelles: All internal data transmission within the nacelle structure
-
Control Systems: Communication for automated control and monitoring systems
-
Sensor Networks: Data collection from various monitoring sensors

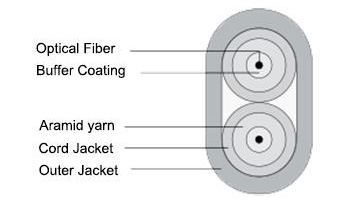

Construction
Advanced Compact Construction:
-
Fiber: SM 9/125, MM 50/125, MM 62.5/125
-
Buffer: 900 ± 50 µm
-
Sub Unit Cord Jacket: LSZH
-
Sub Unit Cord Diameter: Nominal 2.8mm
-
Outer Jacket: LSZH
-
Cable Diameter: Nominal 3.8mm x 6.6mm (Oval)
Technical Data
Performance Specifications:
-
Tensile Strength: 400N
-
Operating Temperature: -10°C to +60°C
Product Specifications
Detailed Product List:
| Fiber Type | Core/Cladding Diameter | Tensile Strength Max. | Bending Radius | Approximate Weight |
|---|---|---|---|---|
| (µm) | (N) | (mm) | (kg/km) | |
| 2 SM | 9/125 | 400 | 35 | 25 |
| 2 MM | 62.5/125 | 400 | 35 | 25 |
| 2 MM | 50/125 | 400 | 35 | 25 |
Key Advantages
-
Critical Control Reliability: Specifically designed for essential wind turbine control functions including rotor speed and pitch angle
-
Space-Optimized Design: Compact oval profile allows efficient routing in crowded nacelle environments
-
Safety Compliance: LSZH materials prevent toxic gas emission and reduce smoke density in fire situations
-
Multiple Fiber Compatibility: Supports both single-mode and multi-mode fibers for various application requirements
-
Proven Durability: 400N tensile strength ensures reliability during installation and operation
-
Wind Industry Specific: Engineered specifically for the demanding requirements of wind power nacelle applications
-
Easy Installation: Flexible design with generous bending radius simplifies installation in complex nacelle systems
