Product Overview

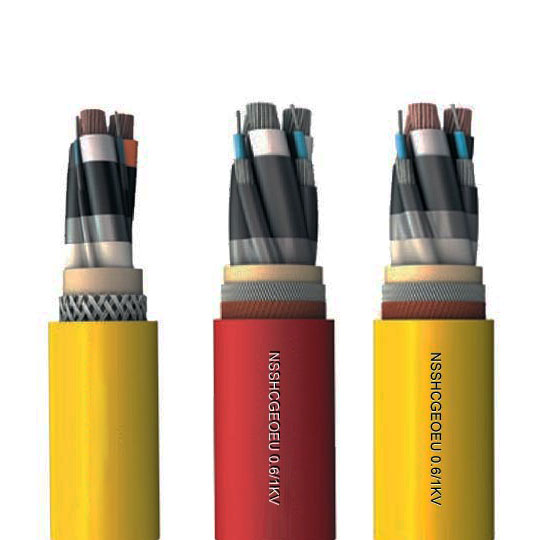

NSSHCGEOEU Coal Cutter Cable is specifically engineered for the most demanding mining applications where extreme mechanical stress is encountered. Designed for coal-cutting machines and other mobile mining equipment, this cable withstands extreme bending loads, high tensile stress, impact, and crushing loads while providing reliable power transmission in the harshest underground environments.
Key Features & Benefits
-
Exceptional Mechanical Durability: Withstands extreme bending loads, high tensile stress, impact, and crushing loads
-
Advanced Monitoring System: Phase-concentric monitoring shield and earth conductor enable continuous insulation fault detection
-
Superior Flexibility: Suitable for operation via guide pulleys (cable cars) and as reeling cable (LHD applications)
-
Enhanced Safety Monitoring: Compatible with monitoring equipment to detect insulation faults and external damage
-
Robust Construction: Abrasion and tear-resistant outer sheath with oil resistance and flame retardant properties
-
Versatile Configuration: Available with 2, 3, or 6 pilot cores to meet specific application requirements
Applications
Extreme-duty mining and industrial applications:
-
Coal-Cutting Machines: Primary connection for coal cutting equipment in mining operations
-
Mobile Mining Machinery: Connection of mobile machines under extremely high mechanical loads
-
Guide Pulley Systems: Operation via cable cars and pulley systems
-
Reeling Applications: LHD (Load-Haul-Dump) reeling cable applications
-
Track Chain Applications: Extreme bending loads inside steel or plastic track chains
-
High-Stress Environments: Mining situations requiring exceptional mechanical durability

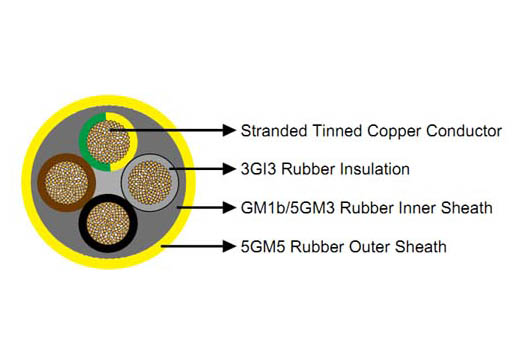

Construction
Advanced Multi-Layer Construction for Extreme Conditions:
-
Conductors: Flexible stranded tinned copper conductor
-
Insulation: Heat-resistant 3GI3 rubber based on EPR
-
Outer Conductor Layer: Easy strippable outer conductive layer
-
Pilot Cores: Copper and steel conductor capable of expansion and compression with 3GI3 EPR rubber insulation
-
Monitoring Conductor: Copper and steel conductor capable of expansion and compression covered with semiconductive rubber compound
-
Inner Sheath: Rubber type GM1b
-
Armour/Earth Conductor: Concentric earth conductor as tensile-stress-resistant braided armour of combined copper-steel wires
-
Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant
Standards Compliance
Applied Standards:
-
VDE 0250 Part 812
Specifications
Detailed Technical Specifications:
| Number of Cores × Nominal Cross Section | Minimum Overall Diameter | Maximum Overall Diameter | Nominal Weight |
|---|---|---|---|
| No. × mm² | mm | mm | kg/km |
| 3×16/16KON+2ST+UEL | 38.5 | 41.5 | 2430 |
| 3×25/16KON+2ST+UEL | 41.0 | 44.5 | 3050 |
| 3×35/16KON+2ST+UEL | 44.5 | 48.0 | 3620 |
| 3×50/25KON+2ST+UEL | 50.0 | 54.0 | 4810 |
| 3×70/35KON+2ST+UEL | 54.5 | 58.5 | 5890 |
| 3×95/50KON+2ST+UEL | 62.5 | 66.5 | 7800 |
| 3×35/16KON+3ST+3UEL | 44.5 | 48.0 | 3860 |
| 3×50/25KON+3ST+3UEL | 50.0 | 54.0 | 5050 |
| 3×70/35KON+3ST+3UEL | 54.5 | 58.5 | 6000 |
| 3×95/50KON+3ST+3UEL | 62.5 | 66.5 | 8050 |
| 3×120/70KON+3ST+3UEL | 67.5 | 72.0 | 9380 |
| 3×150/70KON+3ST+3UEL | 74.5 | 79.0 | 11120 |
Key Advantages
-
Proven Extreme Durability: Specifically designed for coal-cutting machines and high-stress mining applications
-
Comprehensive Safety System: Integrated monitoring conductors enable real-time fault detection
-
Superior Mechanical Performance: Withstands extreme bending, tensile stress, impact, and crushing loads
-
Flexible Application: Suitable for guide pulleys, reeling systems, and track chain installations
-
Robust Material Selection: Heat-resistant EPR insulation with abrasion-resistant outer sheath
-
Industry Compliance: Meets VDE 0250 Part 812 standards for mining cable applications
-
Multiple Configurations: Available in various core combinations to suit different mining equipment requirements
